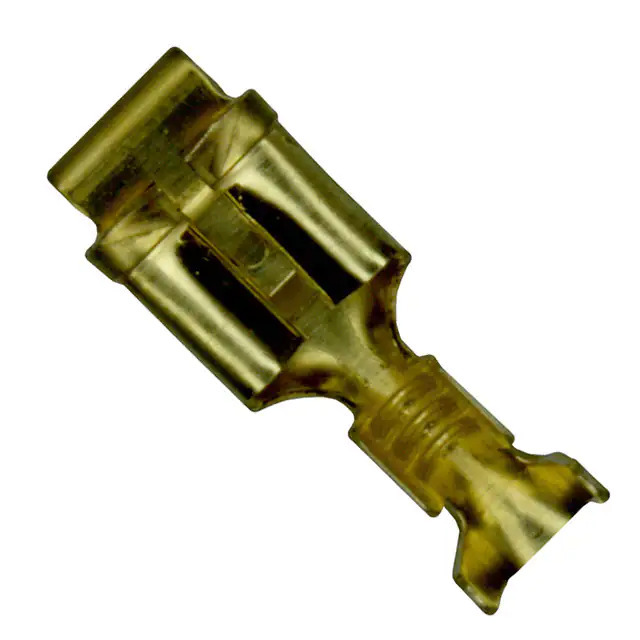

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Stacked
Gender Female and Male
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.225" (5.72mm)
Length - Overall 0.635" (16.13mm)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish -
Insulation Diameter 0.090" ~ 0.130" (2.29mm ~ 3.30mm)
Base Product Number 62026
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364896-62026-2
Ultra Librarian 3D Model Ultra Librarian 62026-2 CAD Model

Description

The TE Connectivity AMP Connectors Faston series Quick Disconnect Connector is a versatile and reliable solution for quick and easy wire connections.

  • Mounting Type: Free-Hanging (In-Line)
  • Wire Gauge: 16-20 AWG
  • Tab Width: 0.187" (4.75mm)
  • Contact Material: Brass
  • Terminal Type: Stacked
  • Overall Length: 0.635" (16.13mm)
  • Insulation Diameter: 0.090" ~ 0.130" (2.29mm ~ 3.30mm)
  • Insulation: Non-Insulated
