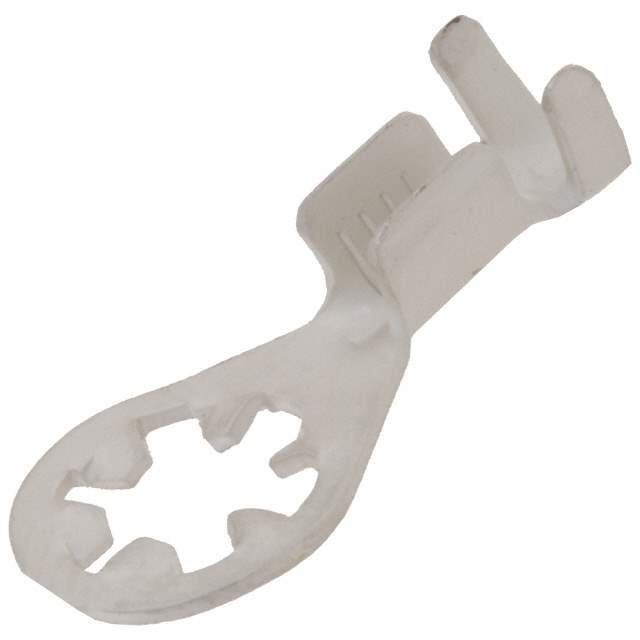

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Circular
Stud/Tab Size 8 Stud
Thickness 0.025" (0.64mm)
Width - Outer Edges 0.370" (9.40mm)
Length - Overall 0.772" (19.61mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Features Inner Teeth, Serrated Termination
Contact Material Steel
Contact Finish Tin
Insulation Diameter 0.105" ~ 0.145" (2.67mm ~ 3.68mm)
Base Product Number 61794
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 61794-1-ND,A29901CT,A29901TR,617941,-61794-1-CSI,-61794-1-SI
Standard Package 9,000
Win Source Part Number 1333567-61794-1
Ultra Librarian 3D Model Ultra Librarian 61794-1 CAD Model

Description

The 1333567-61794-1 is a connector terminal product manufactured by TE Connectivity AMP Connectors.

  • Packaging: Reel - TR
  • Insulation: Non-Insulated
  • Stud/Tab Size: 8 stud
  • Wire Gauge: 14-18 AWG
  • Thickness: 0.025" (0.64mm)
  • Width: 0.370" (9.40mm)
