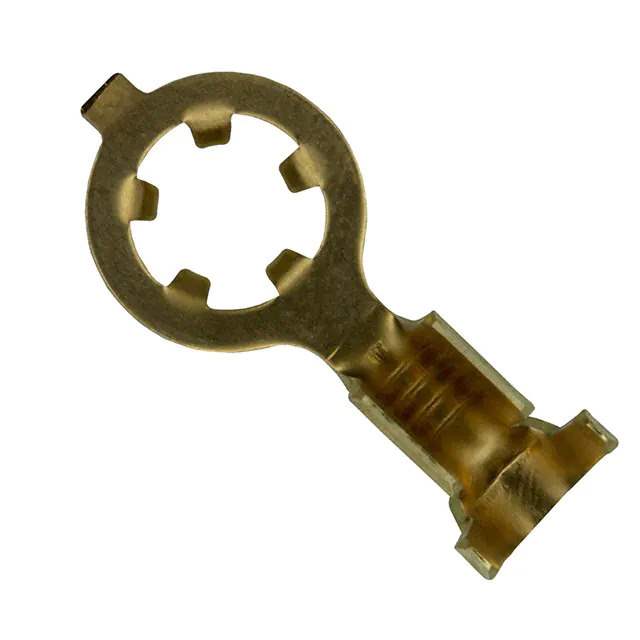

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Terminal Type Circular
Stud/Tab Size 8 Stud
Thickness 0.025" (0.64mm)
Width - Outer Edges 0.370" (9.40mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 12-16 AWG
Insulation Non-Insulated
Features Inner Teeth, Serrated Termination
Contact Material Brass
Insulation Diameter 0.130" ~ 0.170" (3.30mm ~ 4.32mm)
Base Product Number 61624
Standard Package 9,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 907660-61624-1
Ultra Librarian 3D Model Ultra Librarian 61624-1 CAD Model

Description

The 907660-61624-1 is a ring connector designed for use in electronic applications.

  • Category: Connectors, Interconnects - Terminals - Ring Connectors
  • Features: Inner teeth
  • Termination Style: Serrated
  • Termination Method: Crimp
  • Contact Material: Brass
  • Insulation: Non-Insulated
  • Thickness: 0.025" (0.64mm)
  • Width: 0.370" (9.40mm)
  • Wire Gauge: 12-16 AWG
  • Quantity: 9,000 pieces
  • Terminal Type: Circular
  • Mounting Type: Free Hanging (In-Line)
  • Manufacturer: TE Connectivity
  • Status: Active
