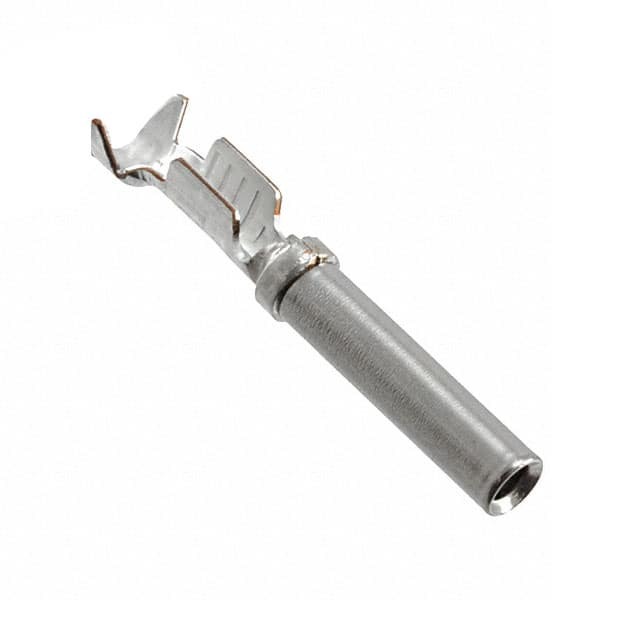

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity
Series AMPSEAL 16 HDSF
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Type Stamped
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 18-20 AWG
Contact Finish Tin
Contact Finish Thickness 100.0µin (2.54µm)
Base Product Number 1924464
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 849303-1924464-2
Ultra Librarian 3D Model Ultra Librarian 1924464-2 CAD Model

Description

The AMPSEAL 16 HDSF Stamped Socket is a rectangular connector contact designed for use in electronic components.

  • Contact Finish: Tin
  • Contact Finish Thickness: 100.0µin (2.54µm)
  • Wire Gauge: 18-20 AWG
  • Termination: Crimp
  • Standard Package: 4,000 pcs
  • Series: AMPSEAL 16 HDSF
  • Manufacturer: TE Connectivity
  • Product Status: Active
  • ECCN: EAR99
