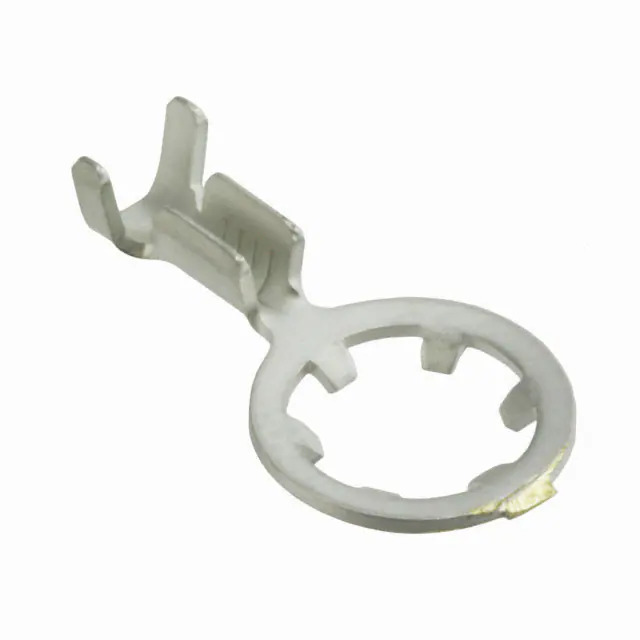

61283-1 TE Connectivity
Same model may have multiple batches, images only for reference.

61283-1

Part No 61283-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING OVAL 16-22AWG CRIMP / Ring Terminal Connector Oval 16-22 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Terminal Type Oval
Stud/Tab Size -
Thickness 0.025" (0.64mm)
Width - Outer Edges 0.455" (11.56mm)
Length - Overall 0.805" (20.45mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Non-Insulated
Features Inner Teeth, Serrated Termination
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.100" ~ 0.140" (2.54mm ~ 3.56mm)
Material - Insulation -
Base Product Number 61283
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364723-61283-1
Ultra Librarian 3D Model Ultra Librarian 61283-1 CAD Model

Description

The 1364723-61283-1 is a ring connector from TE Connectivity AMP Connectors.

  • Design: Inner Teeth, Serrated Termination
  • Wire Gauge: 16-22 AWG
  • Contact Finish: Tin
  • Overall Length: 0.805 inches (20.45mm)
  • Outer Edge Width: 0.455 inches (11.56mm)
  • Termination: Crimp
  • Insulation: Non-Insulated
  • Thickness: 0.025 inches (0.64mm)
  • Mounting Type: Free-Hanging (In-Line)
  • Contact Material: Brass
  • Terminal Type: Oval
  • Insulation Diameter: 0.100 inches to 0.140 inches (2.54mm to 3.56mm)
  • HTSUS Code: 8536.90.4000
  • ECCN: EAR99
