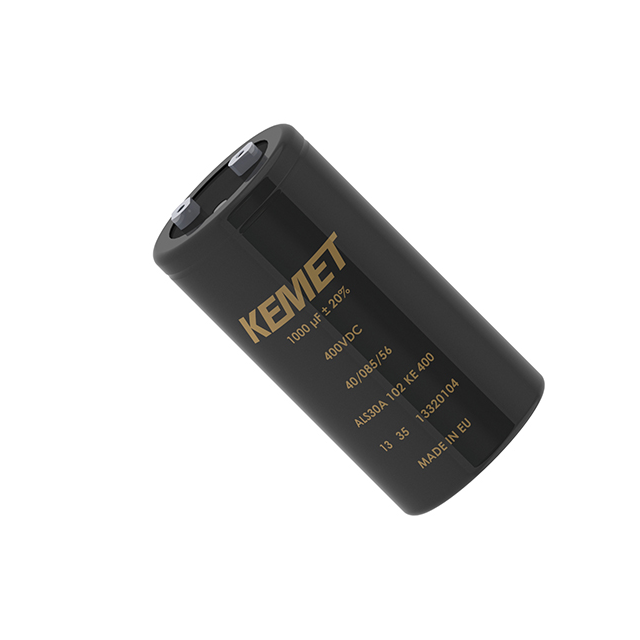

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Mfr KEMET
Series ALS30
Packaging Box
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 500 V
ESR (Equivalent Series Resistance) 1.385Ohm @ 100Hz
Lifetime @ Temp. 11000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.6 A @ 100 Hz
Ripple Current @ High Frequency 2.9 A @ 10 kHz
Impedance 847 mOhms
Lead Spacing 0.504" (12.80mm)
Size / Dimension 1.417" Dia (36.00mm)
Height - Seated (Max) 2.047" (52.00mm)
Mounting Type Chassis Mount
Package / Case Radial, Can - Screw Terminals
Base Product Number ALS30A
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0055
Win Source Part Number 1481687-ALS30A101DA500
Ultra Librarian 3D Model Ultra Librarian ALS30A101DA500 CAD Model
