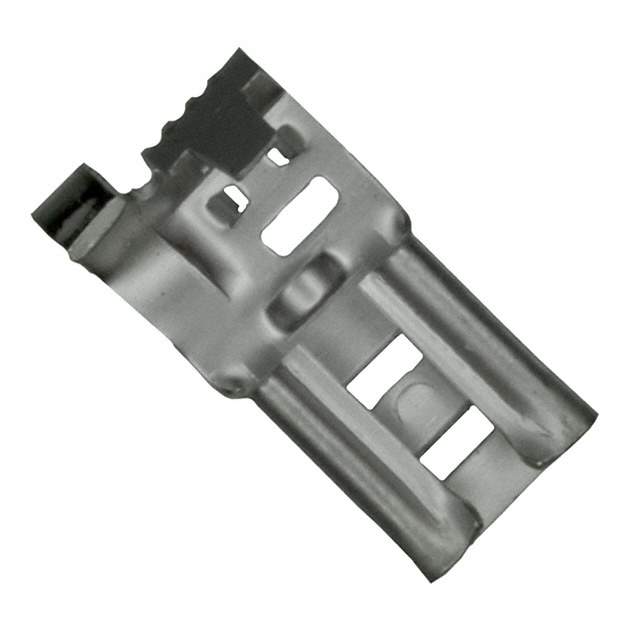

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.250" (6.35mm)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line), Right Angle
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.110" ~ 0.170" (2.79mm ~ 4.32mm)
Base Product Number 60529
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names -60529-2-CSI,60529-2-ND,605292,A27729CT,-60529-2-SI,A27729TR,A27729-ND,2266-60529-2TR,A27729
Standard Package 6,000
Win Source Part Number 970574-60529-2
Ultra Librarian 3D Model Ultra Librarian 60529-2 CAD Model

Description

This electronic component is a part of the Faston series manufactured by TE Connectivity AMP Connectors. It is a female angled-90-degree flag terminal type connector with a wire gauge of 16-20 AWG.

  • Series: Faston
  • Manufacturer: TE Connectivity AMP Connectors
  • Terminal Type: Female Angled-90-Degree Flag
  • Wire Gauge: 16-20 AWG
  • Contact Material: Brass
  • Contact Finish: Tin
  • Package: 6,000 pieces
  • Packaging: Tape and Reel (TR) and Cut Tape (CT)
  • Tab Width: 0.187 inches (4.75mm)
  • Tab Thickness: 0.032 inches (0.81mm)
  • Tab Length: 0.250 inches (6.35mm)
  • Insulation Diameter: 0.110 to 0.170 inches (2.79mm to 4.32mm)
  • Mounting Type: Free-Hanging (In-Line) and Right Angle
