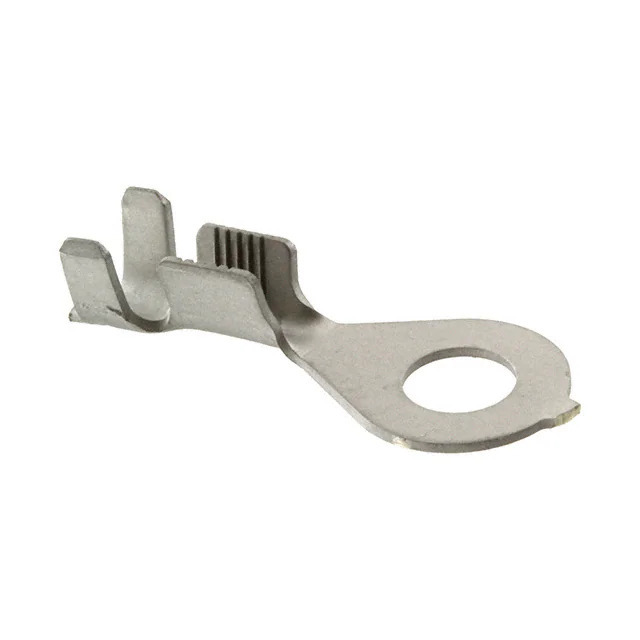

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series Amplivar
Package Tape & Reel (TR)
Product Status Active
Terminal Type Circular
Stud/Tab Size 8 Stud
Thickness 0.020" (0.51mm)
Width - Outer Edges 0.342" (8.69mm)
Length - Overall 0.833" (21.16mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Features Serrated Termination
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.100" ~ 0.140" (2.54mm ~ 3.56mm)
Material - Insulation -
Base Product Number 60320
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364939-60320-2
Ultra Librarian 3D Model Ultra Librarian 60320-2 CAD Model

Description

The TE Connectivity AMP Connectors Amplivar Ring Connector is a reliable and high-quality electrical connector designed for use in various applications.

  • Mounting Type: free-hanging (in-line)
  • Wire Gauge: 14-18 AWG
  • Insulation: non-insulated
  • Termination: crimp
  • Contact Material: brass
  • Contact Finish: tin
  • Overall Length: 0.833 inches (21.16mm)
  • Width: 0.342 inches (8.69mm)
  • Termination Feature: serrated
  • Series: Amplivar
  • Applications: automotive, industrial, and electrical applications
