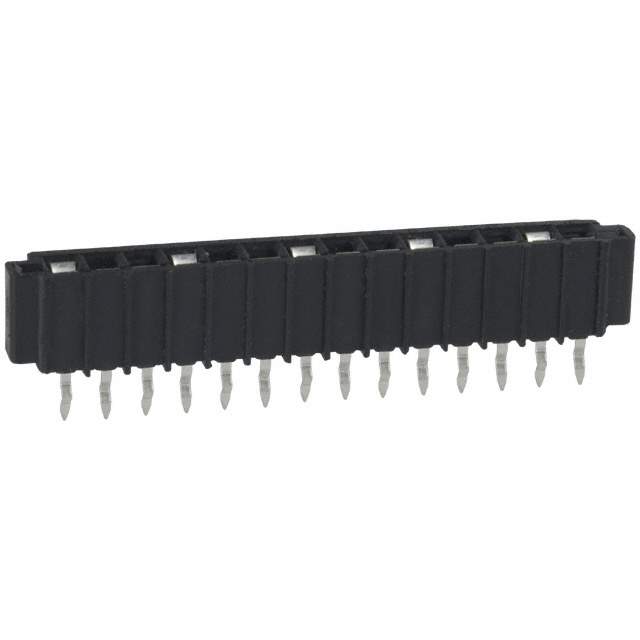

6-520315-4

Name: 6-520315-4
Brand: TE Connectivity
SKU: 1333383
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	6-520315-4
Manufacturer	TE Connectivity
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC VERT 14POS 2.54MM PCB / 14 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.100" (2.54mm) Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Flat Flex Type	FFC, FPC
Mounting	Through Hole
Connector/Contact Type	Contacts, Vertical - 1 Sided
Number of Positions	14
Pitch	0.100" (2.54mm)
Termination	Kinked Pin
FFC, FCB Thickness	0.13mm ~ 0.38mm
Height Above Board	0.273" (6.93mm)
Cable End Type	Straight
Contact Material	Phosphor Bronze
Contact Finish	Tin
Housing Material	Polyester Thermoplastic, Glass Filled
Voltage Rating	250V
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	1A
Housing Color	Black
Mating Cycles	25
Base Product Number	520315
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	65203154,-6-520315-4-SI
Standard Package	105
Win Source Part Number	1333383-6-520315-4
Ultra Librarian 3D Model	Ultra Librarian 6-520315-4 CAD Model

Description

The TE Connectivity AMP Connectors 1333383-6-520315-4 is a 14-position FFC, FPC connector assembly that is used for flat flexible cables.

Pitch: 0.100 inches
Voltage Rating: 250V
Mounting Type: Through-Hole
Termination: Kinked Pins
Housing Material: Polyester Thermoplastic, Glass-Filled
Insulation Material: Liquid Crystal Polymer (LCP)
RoHS3 Compliant: Yes
Current Rating: 1A
