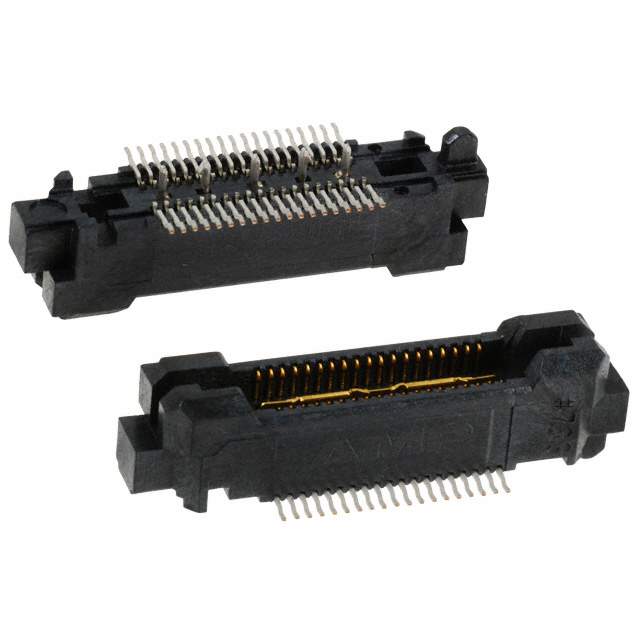

5767007-8 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series MICTOR
Packaging Tube
Connector Type Plug, Outer Shroud Contacts
Number of Positions 38
Pitch 0.025" (0.64mm)
Number of Rows 2
Mounting SMD
Features Board Guide, Ground Bus (Plane)
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Mated Stacking Heights 6.6mm, 15.62mm
Height Above Board 0.251" (6.38mm)
Win Source Part Number 764070-5767007-8
Popularity Medium
Supply and Demand Status Limited
Family Name 5767007
Introduction Date December 15, 2004
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 5767007-8 CAD Model

Description

The TE Connectivity AMP Connectors MICTOR series is a tube-packaged connector from TE Connectivity AMP Connectors.

  • Positions: 38
  • Pitch: 0.025 inches
  • Features: Board Guide, Ground Bus (Plane), Plug, Outer Shroud
  • Rows: 2
  • Contact Finish: Gold
  • Contact Finish Thickness: 30μin (0.76μm)
  • Mated Stacking Heights: 6.6mm, 15.62mm
  • Height Above Board: 0.251 inches (6.38mm)
  • Mounting Type: Surface Mount Device (SMD)
  • Family Name: 5767007
  • Categories: Connectors and Interconnects
  • Introduction Date: December 15, 2004
  • Estimated End-of-Life Date: 2026
  • Compliance: Halogen-Free
  • Popularity: Medium
