Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Status Active
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Mounting Through Hole, Right Angle
Flange Feature Housing/Shell (4-40)
Termination Solder
Features Board Lock, Ground Strap
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C to 105°C
Voltage Rating 125V
Current Rating 6A
Color Black
Housing Material Thermoplastic
Backset Spacing 0.318" (8.08mm)
Win Source Part Number 1006163-5747844-3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 5747844-3 CAD Model

Description

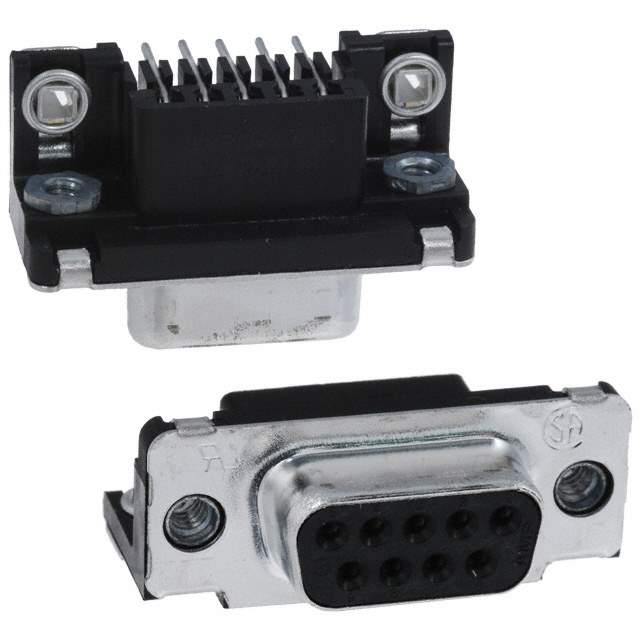

The 5747844-3 is a D-sub connector receptacle manufactured by TE Connectivity AMP Connectors.

  • Positions: 9
  • Application: signal
  • Current Rating: 6A
  • Voltage Rating: 125V
  • Mounting Type: through hole, right angle
  • Flange Feature: housing/shell (4-40)
  • Package: tray
  • Color: black
  • Housing Material: thermoplastic
  • Material Flammability Rating: UL94 V-0
  • Status: active
  • Popularity: medium
