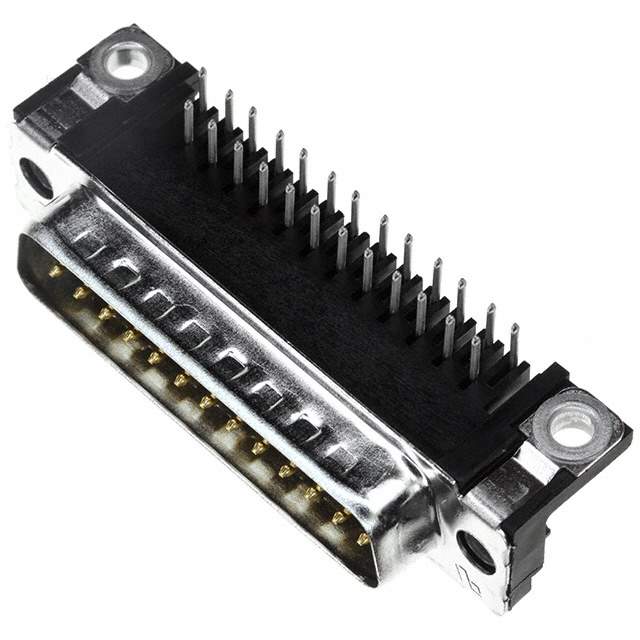

5747238-4 Real Image
Same model may have multiple batches, images only for reference.

5747238-4

Part No 5747238-4
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description CONN D-SUB PLUG 25POS R/A SOLDER
Datasheet
5747238-4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Packaging Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 25
Number of Rows 2
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Mounting Through Hole, Right Angle
Flange Feature Housing/Shell (4-40)
Termination Solder
Features Ground Strap, Grounding Indents
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Operating Temperature Range -55°C ~ 105°C
Voltage Rating 125V
Current Rating 6A
Color Black
Contact Material Brass
Backset Spacing 0.318" (8.08mm)
Win Source Part Number 764783-5747238-4
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5747238-4 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HD-20 series from TE Connectivity AMP Connectors is a plug connector with male pins and 25 positions.

  • Color: Black
  • Grounding Features: Ground strap, grounding indents
  • Voltage Rating: 125V
  • Current Rating: 6A
  • Operating Temperature: -55°C to 105°C
  • Contact Type: Signal contact
  • Termination: Solder
  • Contact Finish: Gold
  • Material: Brass
  • Housing Material: Not Specified
  • Mounting Type: Through-hole, right-angle
  • Flange Feature: Housing/shell (4-40)
  • Shell Material: Steel
  • Shell Finish: Tin-plated
  • Connector Layout: 3 (DB, B)
  • Packaging: Tray
  • Category: Interconnects and Connectors
