Products specifications

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects D-Sub, D-Shaped Connectors Centronics Connectors
Package Tray
Product Status Active
Connector Style Center Strip Contacts
Connector Type Plug
Mounting Type Mounting Type
Termination Solder
Flange Feature Tapped, Threaded (4-40)
Win Source Part Number WS1209371-5552745-1
Ultra Librarian 3D Model Ultra Librarian 5552745-1 CAD Model

Description

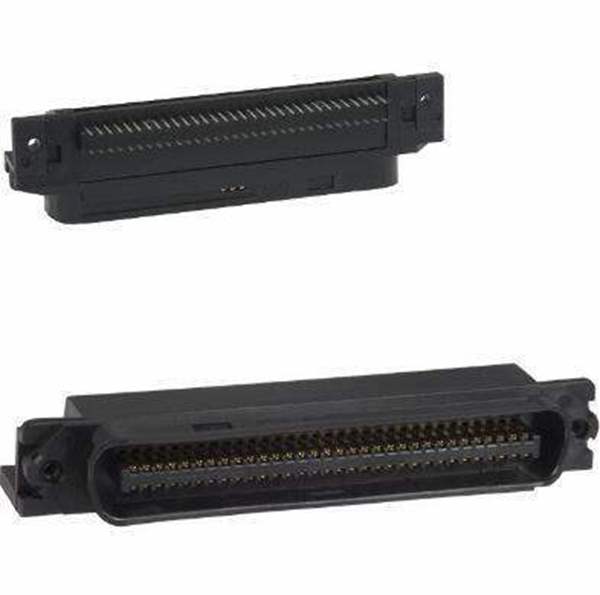

PCB D-Sub Connectors, Plug, Cable-to-Board, 64 Position, 2.16 mm [.085 in] Centerline, 2 Row, Standard Profile, Right Angle, PCB Mount Retention
