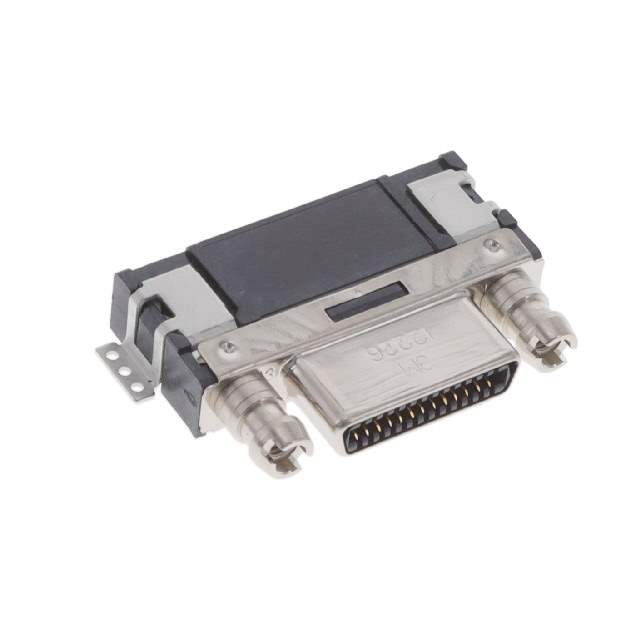

12226-8250-00FR Real Image
Same model may have multiple batches, images only for reference.

12226-8250-00FR

Part No 12226-8250-00FR
Manufacturer 3M
Catalog D - Shaped Connectors - Centronics
Description 3M SHRUNK DELTA RIBBON (SDR) CONN.
Datasheet
12226-8250-00FR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer 3M
Series 122, Shrunk D Ribbon (SDR)
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 26
Number of Rows 2
Mounting Surface Mount, Right Angle
Termination Solder
Flange Feature Mating Side (M2)
Features Board Guide, Shielded
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Manufacturer Homepage www.3m.comesd
Win Source Part Number 736053-12226-8250-00FR
Popularity Medium
Supply and Demand Status Limited
Family Name 12226
Introduction Date August 21, 2006
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 12226-8250-00FR CAD Model

Description

The 736053-12226-8250-00FR is a high-quality connector that is designed to provide reliable performance in a wide range of applications.

  • Manufacturer: 3M
  • Series: 122
  • Features: Board guide, shielded
  • Type: Receptacle
  • Rows: Two
  • Positions: 26
  • Termination: Solder
  • Contact Finish: Gold, 30μin (0.76μm)
  • Contact Style: Outer shroud contacts
  • Mounting: Surface mount, right-angle flange
