Same model may have multiple batches, images only for reference.

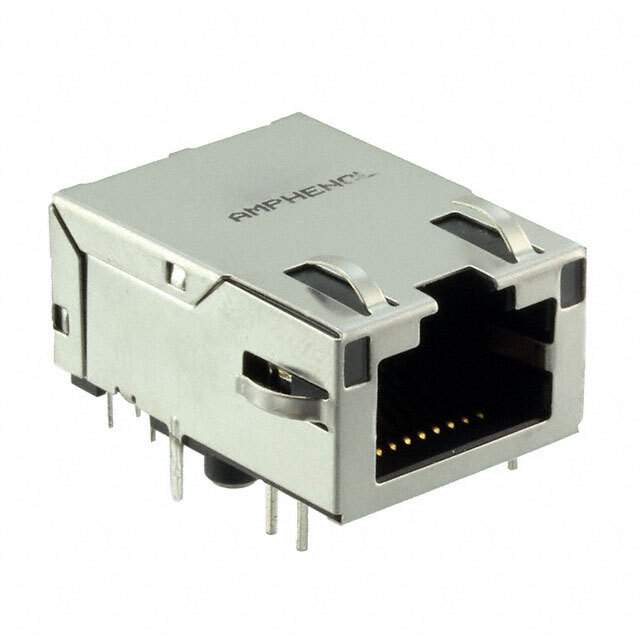

RJMG2012211A0FR Real Image
Same model may have multiple batches, images only for reference.

RJMG2012211A0FR

Part No RJMG2012211A0FR
Manufacturer Amphenol
Catalog Modular Connectors
Description CONN JACK 1PORT 1000 BASE-T PCB / 1 Port RJ45Board Edge, Through Hole 10/100/1000 Base-T, AutoMDIX
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr Amphenol ICC (Commercial Products)
Series RJMG
Package Tray
Product Status Obsolete
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Board Edge, Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.445" (11.30mm)
LED Color Green - Green
Number of Cores per Jack 12
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 50.0µin (1.27µm)
Shield Material Stainless Steel
Housing Material Thermoplastic
Base Product Number RJMG2
Standard Package 450
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337247-RJMG2012211A0FR
Ultra Librarian 3D Model Ultra Librarian RJMG2012211A0FR CAD Model

Description

The RJMG2012211A0FR is a 1-port, 1-row, shielded, EMI finger, RJ45 modular connector jack with magnetics from Amphenol ICC (Commercial Products).

  • Orientation: 90° (Right Angle)
  • Mounting Type: Board Edge, Through Hole
  • Height Above Board: 0.445" (11.30mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0µin (1.27μm)
  • RoHS: Compliant
  • Operating Temperature: -40°C to 85°C
  • LED Color: Green-Green
  • Number of Cores per Jack: 12
