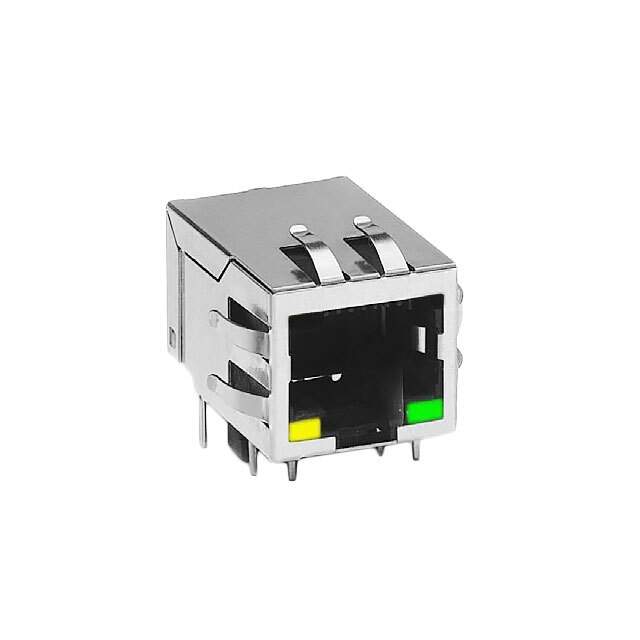

JX00-0027NL Real Image
Same model may have multiple batches, images only for reference.

JX00-0027NL

Part No JX00-0027NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN MAGJACK 1PORT 100 BASE-TX / Conn RJ-45 Solder RA Thru-Hole
Datasheet
JX00-0027NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Pulse Electronics Corporation
Series PULSEJACK JX0
Packaging Bulk
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Style Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.545" (13.84mm)
LED Color Green - Yellow
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Operating Temperature Range -40°C ~ 85°C
Contact Finish Thickness 15μin (0.38μm)
Shield Material Copper Alloy
Housing Material Thermoplastic
Win Source Part Number 777717-JX00-0027NL
Popularity Medium
Supply and Demand Status Limited
Family Name JX00
Introduction Date January 26, 2007
ECCN EAR99
Country of Origin China
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian JX00-0027NL CAD Model

Description

The Pulse Electronics Corporation PULSEJACK JX0 connector is a high-quality electronic component that is designed to meet the needs of modern electronic devices.

  • Packaging: Bulk
  • Mounting Type: Through Hole
  • Orientation: 90° Angle (Right)
  • Features: Board Guide
  • Category: Connectors, Interconnects
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2029
  • Height Above Board: 0.545 inches (13.84mm)
  • Shielding: EMI Finger
  • Cores Per Jack: 4
  • Number of Ports: 1
  • LED Color: Green-Yellow
  • Contact Finish: Gold, 15μin (0.38μm)
  • Contact Material: Phosphor Bronze
  • Housing Material: Thermoplastic
  • Applications: 10/100 Base-TX, AutoMDIX
