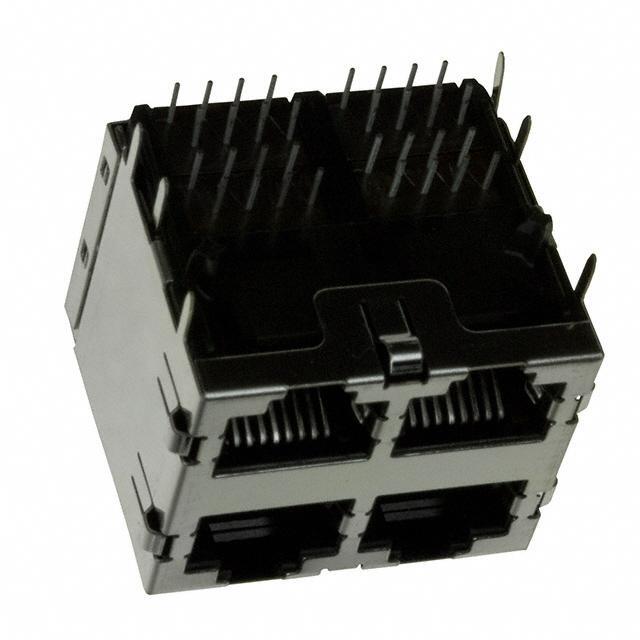

5569260-1 TE Connectivity 5569260-1 Real Image
Same model may have multiple batches, images only for reference.
5569260-1 TE Connectivity 5569260-1 Real Image
5569260-1 TE Connectivity 5569260-1 Real Image
Same model may have multiple batches, images only for reference.

5569260-1

Part No 5569260-1
Manufacturer TE Connectivity
Catalog Modular Connectors
Description CONN MOD JACK 8P8C R/A SHIELDED / STACKED MODULAR JACK ASSEMBLY
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 4
Number of Rows 2
Mounting Style Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Shielded, EMI Finger
Ratings Cat5
Features Board Guide
LED Color Does Not Contain LED
Tab Direction Up and Down
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50.0μin (1.27μm)
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809242-5569260-1
Ultra Librarian 3D Model Ultra Librarian 5569260-1 CAD Model

Description

The TE Connectivity AMP Connectors 809242-5569260-1 is a jack connector with a 90° angle (right) orientation.

  • Number of Ports: 4
  • Shielding: EMI Finger
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0μin (1.27μm)
  • Housing Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 85°C
  • Rated As: Cat5
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Packaging: Tray
  • Manufacturer Pack Quantity: 30
  • MSL Level: 1 (Unlimited)
