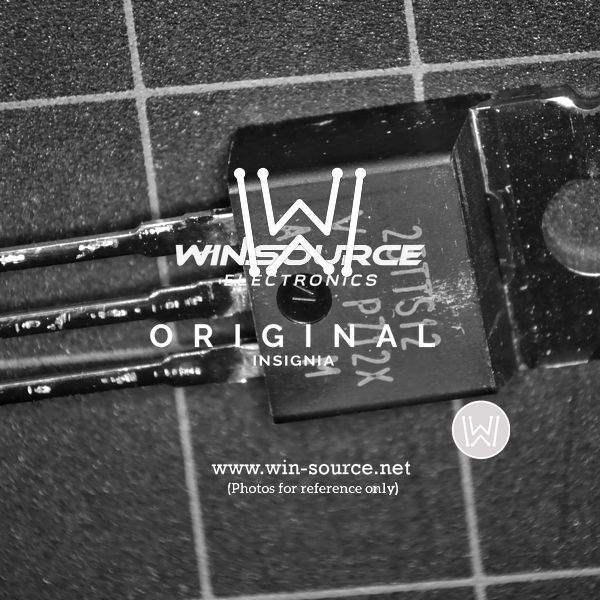

25TTS12 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Status Obsolete
Voltage - Off State 1.2kV
Voltage - Gate Trigger (Vgt) (Maximum) 2V
Current - Gate Trigger (Igt) (Maximum) 45mA
Voltage - On State (Vtm) (Maximum) 1.25V
Current - On State (It (AV)) (Maximum) 16A
Current - On State (It (RMS)) (Maximum) 25A
Current - Hold (Ih) (Maximum) 100mA
Current - Off State (Maximum) 500μA
Current - Non Rep. Surge 50, 60Hz (Itsm) 350A at 50Hz
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C
Mounting Style Through Hole
Manufacturer Package TO-220-3
Supplier Device Package TO-220AB
Family Part Number 25TTS*
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1123393-25TTS12
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management, Signal Processing
Ultra Librarian 3D Model Ultra Librarian 25TTS12 CAD Model

Description

The Vishay 1123393-25TTS12 is a standard recovery SCR that is used in power management and signal processing applications. 1123393-25TTS12 is from Vishay.

  • Maximum On-State Current: 25A
  • Maximum Gate Trigger Voltage: 2V
  • Gate Trigger Current: 45mA
  • Maximum Holding Current: 100mA
  • On-State Voltage Drop: 1.25V
  • Maximum Off-State Current: 500μA
  • Package: TO-220AB
  • Mounting: Through Hole
  • Operating Temperature: -40°C to 125°C
  • Off-State Voltage: 1.2kV
  • Status: Obsolete
  • Supply and Demand Status: Limited
