5558503-1 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 4
Number of Rows 1
Mounting Style Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Shielded
Ratings Cat5e
Features Board Guide
LED Color Does Not Contain LED
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50μin (1.27μm)
Housing Material Polyamide (PA), Nylon
Operating Temperature Range -40°C ~ 85°C
Win Source Part Number 764028-5558503-1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5558503-1 CAD Model

Description

{"ProductId":702406,"FormattedDescription":"

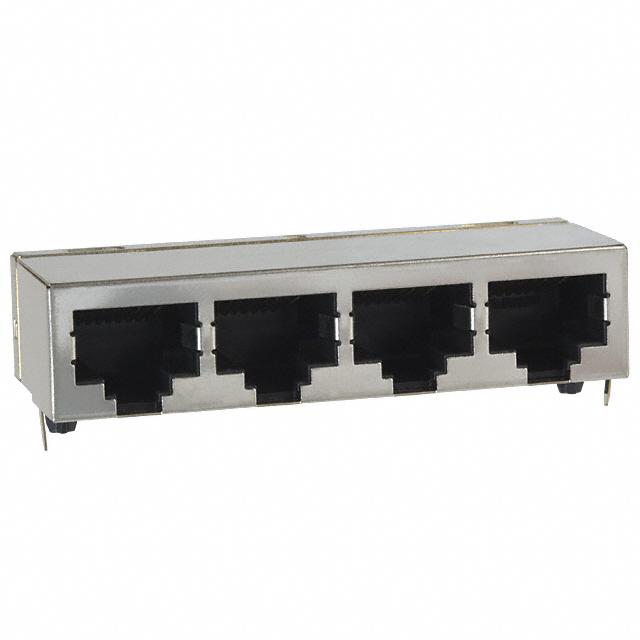

TE Connectivity AMP Connectors 764028-5558503-1 is a shielded jack connector with 90-degree orientation.

  • Ports: 4
  • Connector Type: 8p8c (RJ45, Ethernet)
  • Contact Finish: Gold
  • Contact Material: Phosphor Bronze
  • Housing Material: Polyamide (PA), Nylon
  • Ratings: Cat5e
  • LED: No
  • Operating Temperature: -40°C to 85°C
  • Packaging: Tray
"}
