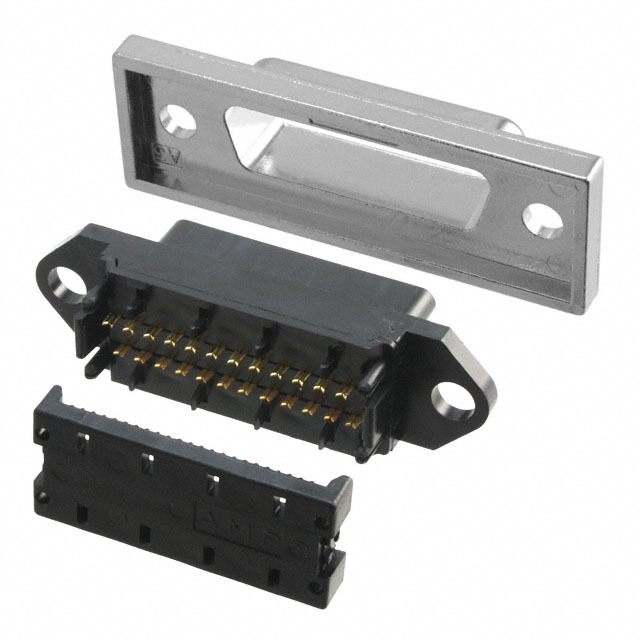

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Product Status Not For New Designs
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 24
Number of Rows 2
Mounting Type Panel Mount
Termination IDC
Flange Feature Housing/Shell (Unthreaded)
Features Shielded
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1628928-554349-1
Ultra Librarian 3D Model Ultra Librarian 554349-1 CAD Model
