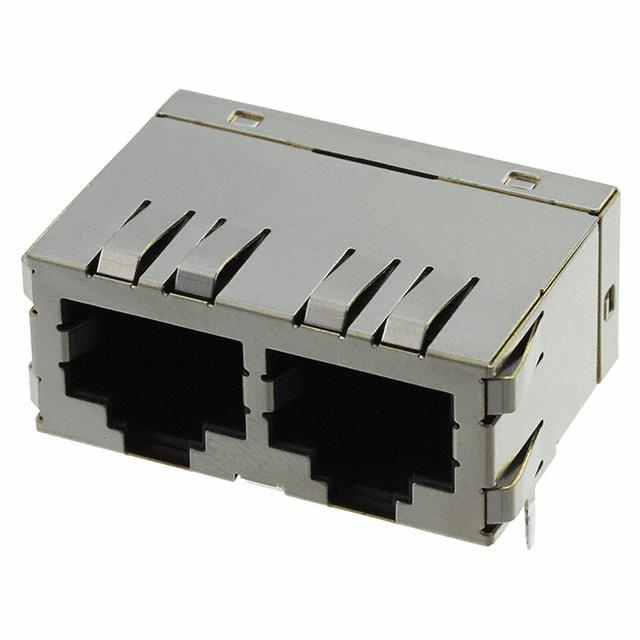

5406566-2 TE Connectivity
Same model may have multiple batches, images only for reference.

5406566-2

Part No 5406566-2
Manufacturer TE Connectivity
Catalog Modular Connectors
Description CONN MOD JACK 8P8C R/A SHIELDED
Datasheet
5406566-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 2
Number of Rows 1
Mounting Style Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Shielded, EMI Finger
Ratings Cat5
Features Board Guide
LED Color Does Not Contain LED
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50μin (1.27μm)
Housing Material Polyamide (PA), Nylon
Operating Temperature Range -40°C ~ 85°C
Win Source Part Number 763994-5406566-2
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5406566-2 CAD Model

Description

{"ProductId":702372,"FormattedDescription":"

This TE Connectivity AMP Connectors jack connector is a high-quality component designed for use in Ethernet applications.

  • Rows: 1
  • Positions/Contacts: 8-position, 8-contact (8p8c)
  • Interface: RJ45
  • Shielding: Shielded, EMI finger housing
  • Mounting: Through hole
  • Termination: Solder
  • Orientation: 90-degree angle
  • Housing Material: Polyamide (PA) nylon
  • Contact Material: Phosphor Bronze
  • Contact Finish Thickness: 50μin (1.27μm)
  • Ratings: Cat5
  • Features: Board guide, Down tab direction
"}
