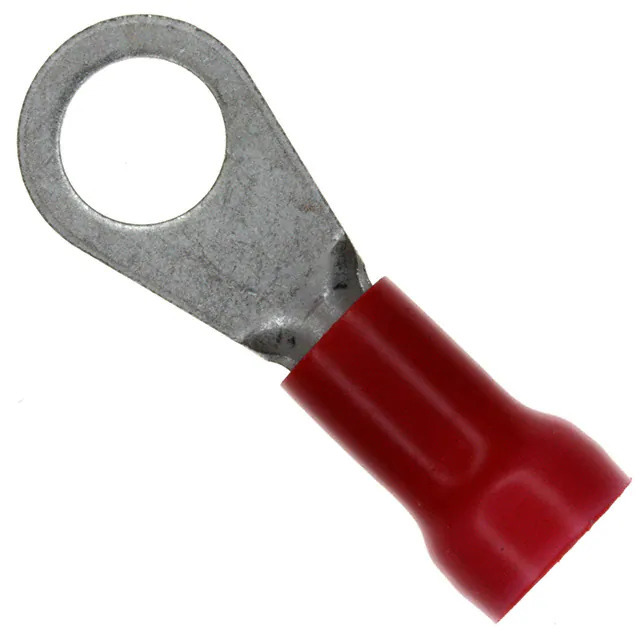

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series Plasti-Grip
Package Bulk
Product Status Active
Terminal Type Circular
Stud/Tab Size 3/8 Stud
Thickness 0.040" (1.02mm)
Width - Outer Edges 0.587" (14.91mm)
Length - Overall 1.696" (43.08mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 8 AWG
Insulation Insulated
Features Serrated Termination
Color Red
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.360" (9.14mm)
Material - Insulation Poly-Vinyl Chloride (PVC)
Base Product Number 52291
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365087-52291-1
Ultra Librarian 3D Model Ultra Librarian 52291-1 CAD Model

Description

The TE Connectivity AMP Connectors 1365087-52291-1 is a ring connector from the Plasti-Grip series.

  • Package: Bulk
  • Termination: Serrated Termination
  • MSL Level: 1
  • Color: Red
  • Mounting Type: Free Hanging (In-Line)
  • Wire Gauge: 8 AWG
  • Product Status: Active
