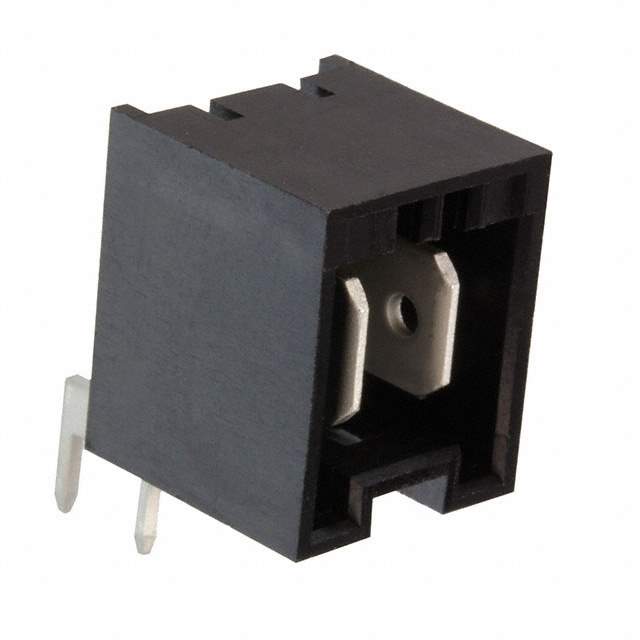

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Header
Gender Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.504" (12.80mm)
Termination Solder
Insulation Fully Insulated
Mounting Through Hole, Right Angle
Features 2 Tabs
Color Black
Contact Material Brass
Contact Finish Tin
Base Product Number 521384
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 521384-2-ND,2266-521384-2,A122001,-521384-2-SI
Standard Package 208
Win Source Part Number 1333603-521384-2
Ultra Librarian 3D Model Ultra Librarian 521384-2 CAD Model

Description

The TE Connectivity AMP Connectors 1147057 is a male header terminal with 2 tabs.

  • Termination: Fully Insulated Solder
  • Contact Finish: Tin
  • Mounting: Through Hole, Right Angle
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Length: 0.504" (12.80mm)
  • Packaging: Bulk
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
