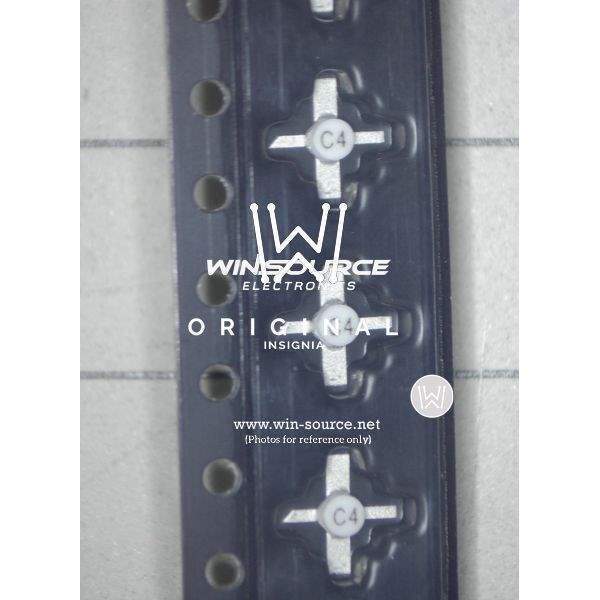

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer RF Micro Devices
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 0Hz to 6GHz
P1dB 18.5dBm (70.8mW)
Gain 19.3dB to 21.3dB @ 850MHz
Noise Figure 3.6dB
RF Type General Purpose
Supply Voltage - Operating 4.3 V to 5.3 V
Operating Supply Current 65mA
Test Frequency 0 to 6GHz
Case / Package 4-Micro-X
Win Source Part Number 062478-RF2044TR7
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RF2044TR7 CAD Model

Description

The RF Micro Devices 062478-RF2044TR7 is a general-purpose RF amplifier designed to operate from 0Hz to 6GHz.

  • Frequency Range: 0Hz to 6GHz
  • Gain Range @ 850MHz: 19.3dB to 21.3dB
  • Noise Figure: 3.6dB
  • P1dB: 18.5dBm (70.8mW)
  • Operating Voltage: 4.3V to 5.3V
  • Operating Supply Current: 65mA
  • Packaging: Reel - TR
  • Case/Package: 4-Micro-X
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand Status: Limited
