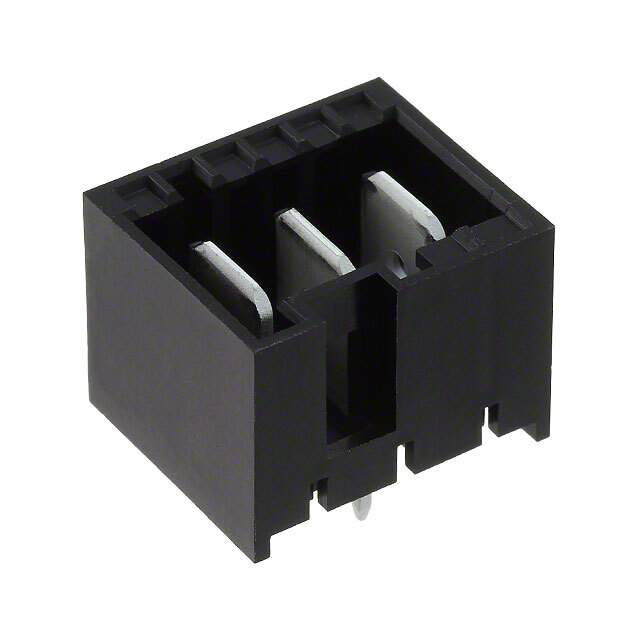

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Package Bulk
Connector Type Header
Contact Type Tab
Pitch - Mating 0.197" (5.00mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.504" (12.80mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 150.0µin (3.81µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66) , Nylon 6/6
Features Board Guide, Glow Wire Compliant
Temperature Range - Operating -40°C ~ 120°C
Material Flammability Rating UL94 V-0
Voltage Rating 250VAC
Contact Finish Thickness - Post 150.0µin (3.81µm)
Applications General Purpose
Base Product Number 521383
Standard Package 720
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350795-521383-3
Ultra Librarian 3D Model Ultra Librarian 521383-3 CAD Model

Description

The 521383-3 is a header connector with 3 positions from TE Connectivity AMP Connectors.

  • Features: Board Guide, Glow Wire Compliant
  • Application: General Purpose
  • Voltage Rating: 250VAC
  • Mounting Type: Through Hole
  • Pitch: 0.197" (5.00mm)
  • Contact Material: Brass
  • Contact Finish (Mating): Tin
  • Contact Finish (Post): Tin
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Insulation Height: 0.504" (12.80mm)
  • Temperature Range: -40°C ~ 120°C
  • ECCN: EAR99
  • REACH: Vendor Undefined
