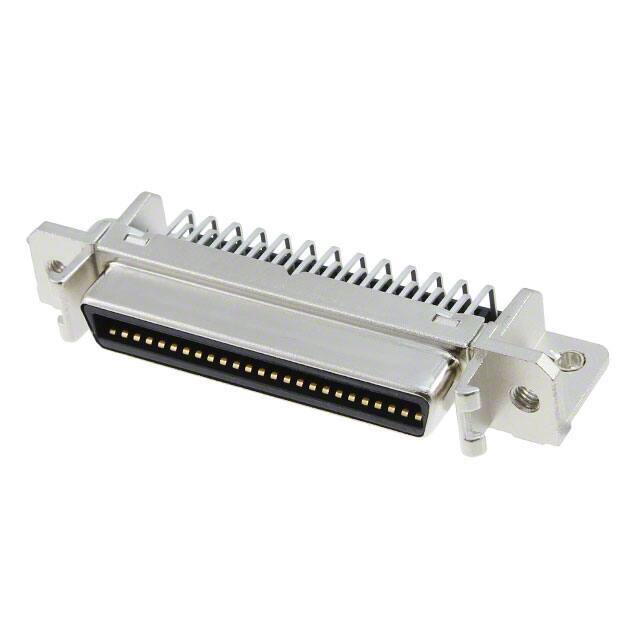

5178238-7 TE Connectivity
Same model may have multiple batches, images only for reference.

5178238-7

Part No 5178238-7
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description CONN RCPT 50POS R/A SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - Centronics Connectors
Mfr TE Connectivity AMP Connectors
Series CHAMP .050 II
Package Box
Product Status Active
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 50
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Flange Feature Board Side (M2.6); Latchblocks
Type -
Features Board Lock
Contact Finish Gold
Contact Finish Thickness 11.8µin (0.30µm)
Base Product Number 5178238
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1377496-5178238-7
Ultra Librarian 3D Model Ultra Librarian 5178238-7 CAD Model

Description

The TE Connectivity AMP Connectors CHAMP .050 II series is a panel mount, through-hole, right-angle receptacle connector. It features a board lock for secure and reliable connections. The connector has 50 positions and 2 rows, with a gold contact finish thickness of 11.8µin (0.30µm).

  • Manufacturer: TE Connectivity AMP Connectors
  • Series: CHAMP .050 II
  • Mounting Type: Panel Mount, Through Hole
  • Orientation: Right Angle
  • Board Lock: Yes
  • Number of Positions: 50
  • Number of Rows: 2
  • Contact Finish: Gold
  • Contact Finish Thickness: 11.8µin (0.30µm)
  • Flange Feature: Board Side (M2.6) Latchblocks
  • Category: Connectors, Interconnects
  • Sub Category: D-sub, D-shaped Connectors
  • Temperature Range: -40°C to 150°C
  • MSL: Level 1 (Unlimited)
  • Status: Active
  • Packaging: Box
  • Base Product Number: 5178238
  • HTSUS Code: 8536.69.4040
  • REACH Status: Vendor Undefined
  • ECCN: EAR99
