Same model may have multiple batches, images only for reference.

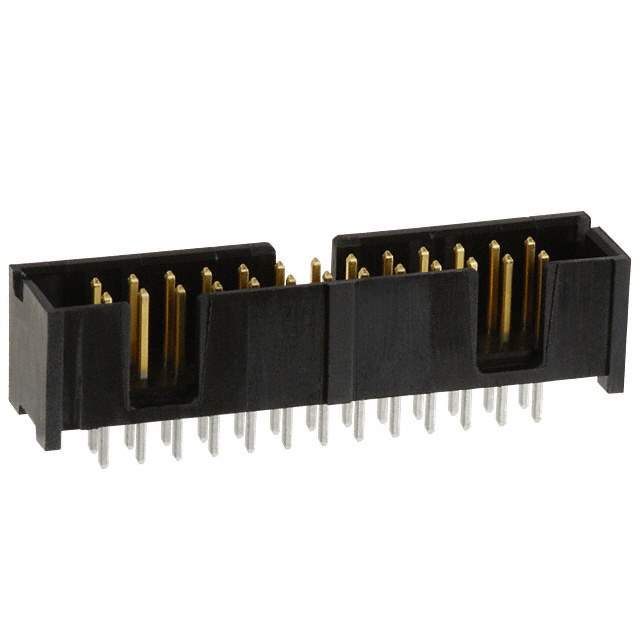

5103308-6 Real Image
Same model may have multiple batches, images only for reference.

5103308-6

Part No 5103308-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description HEADER ASSY, VERTICAL, LOW PROFILE, AMP-LATCH | CONN HEADER VERT 26POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.120" (3.05mm)
Insulation Height 0.388" (9.86mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 15.0μin (0.38μm)
Contact Finish - Post Tin
Contact Material Brass
Features Keying Slot
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Contact Finish Thickness - Post 100.0μin (2.54μm)
Manufacturer Pack Quantity 60
MSL Level 1 (Unlimited)
Win Source Part Number 1129028-5103308-6
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5103308-6 CAD Model

Description

TE Connectivity AMP Connectors presents a 1129028-5103308-6 male pin header connector that has 26 positions and is shrouded with 4 walls.

  • Positions: 26
  • Shrouded: Yes, 4 walls
  • Package: Tube
  • Pitch: 0.100" (2.54mm)
  • Operating Temperature: -65°C to 105°C
  • Current Rating: 1A per contact
