Part No 5102321-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors

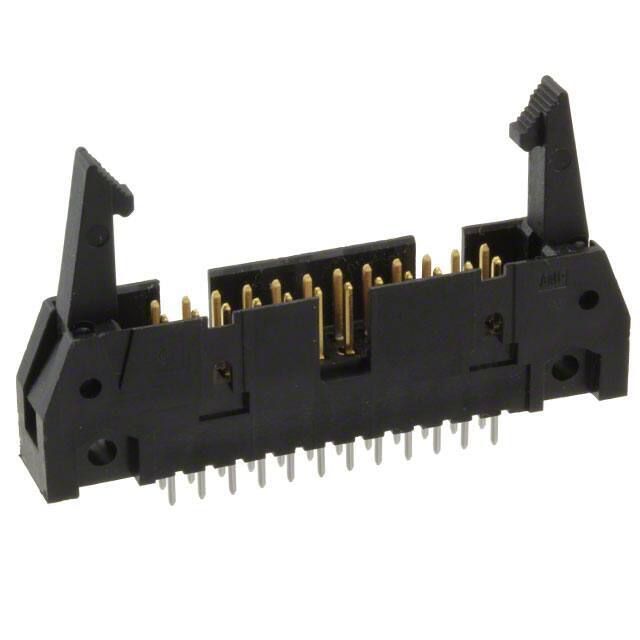

Description CONN HEADER VERT 24POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMP-Latch
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 24
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.155" (3.94mm)
Overall Contact Length 0.684" (17.37mm)
Insulation Height 0.549" (13.94mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material -
Insulation Material -
Features Keying Slot, Mounting Flange
Temperature Range - Operating -65°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Voltage Rating 250VAC
Mated Stacking Heights -
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications -
Base Product Number 5102321
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1377487-5102321-5
Ultra Librarian 3D Model Ultra Librarian 5102321-5 CAD Model

Description

The 1188606 is a male pin header connector from TE Connectivity AMP Connectors.

  • Product Type: Header
  • Connector Type: Pin Header, Male
  • Series: AMP-Latch
  • Packaging: Tray
  • Current Rating per Contact: 1A
  • Mounting Type: Board to Cable/Wire
  • Pitch: 0.100" (2.54mm)
  • Number of Positions: 24
  • Number of Rows: 2
  • Shrouding: Shrouded - 4 Wall
  • Termination: Solder
  • Fastening Type: Latch Lock/Eject Hooks
  • Contact Length - Mating: 0.240" (6.10mm)
  • Contact Length - Post: 0.155" (3.94mm)
  • Overall Contact Length: 0.684" (17.37mm)
  • Insulation Height: 0.549" (13.94mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Gold or Gold-Palladium
  • Contact Finish - Post: Tin
  • Voltage Rating: 250VAC
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Black
