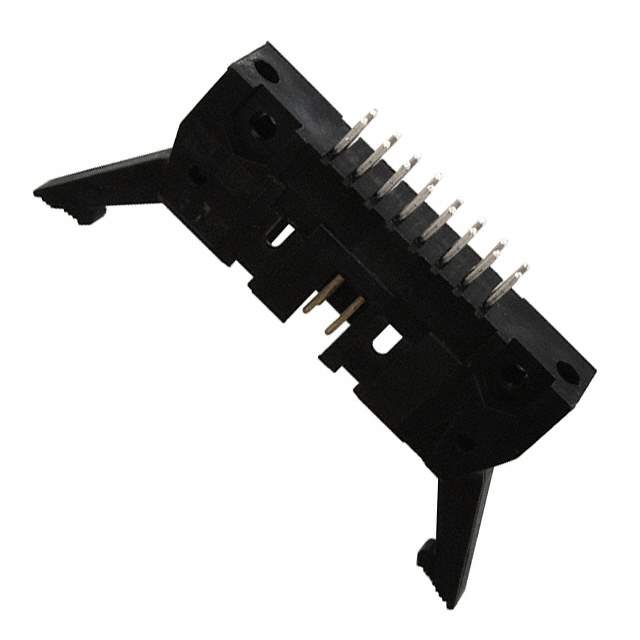

5102321-3 Real Image
Same model may have multiple batches, images only for reference.

5102321-3

Part No 5102321-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 16POS .100 GOLD
Datasheet
5102321-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMP-Latch
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 16
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Style Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.155" (3.94mm)
Overall Contact Length 0.684" (17.37mm)
Insulation Height 0.549" (13.94mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Features Keying Slot, Mounting Flange
Operating Temperature Range -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 1A per Contact
Voltage Rating 250VAC
Contact Finish Thickness - Post 100μin (2.54μm)
Win Source Part Number 760127-5102321-3
Popularity Medium
Supply and Demand Status Limited
Family Name 5102321
Introduction Date September 29, 2009
ECCN EAR99
Country of Origin China, United States of America
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 5102321-3 CAD Model

Description

The TE Connectivity AMP Connectors 760127-5102321-3 is a 16-position header connector with a through-hole mounting style and latch lock/eject hooks, long fastening type.

  • Voltage Rating: 250VAC
  • Current Rating: 1A per contact
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Gold or Gold-Palladium
  • Popularity: Medium
  • Supply and Demand Status: Limited
