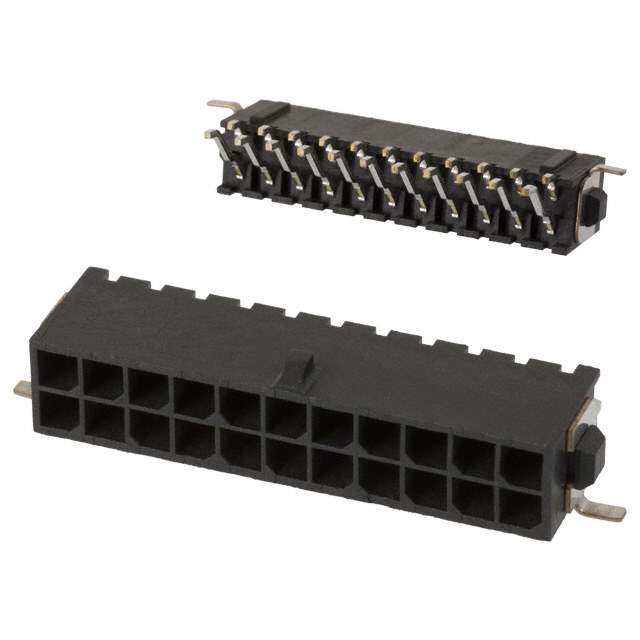

5-794629-2 Real Image
Same model may have multiple batches, images only for reference.

5-794629-2

Part No 5-794629-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 22POS 3MM / Connector Header Surface Mount, Right Angle 22 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 22
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.290" (7.37mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose
Base Product Number 794629
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2266-5-794629-2
Standard Package 150
Win Source Part Number 1334248-5-794629-2
Ultra Librarian 3D Model Ultra Librarian 5-794629-2 CAD Model

Description

The 1334248-5-794629-2 is a rectangular connector that is designed for use in various applications.

  • Connector Type: Male pin header
  • Positions: 22
  • Application: General-purpose
  • Voltage Rating: 250V
  • Mounting: Surface
  • Standard Package: 150
  • Pitch: 0.118 inches
  • Contact Finish: Gold
  • Operating Temperature: -40°C to 105°C
