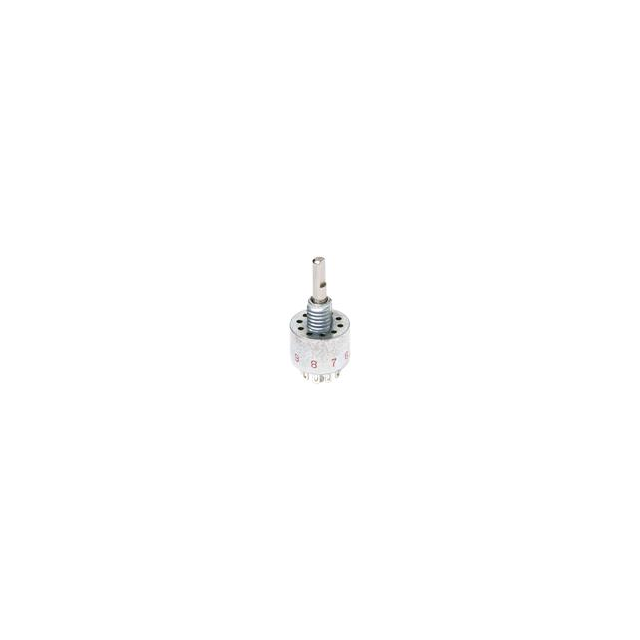

Same model may have multiple batches, images only for reference.

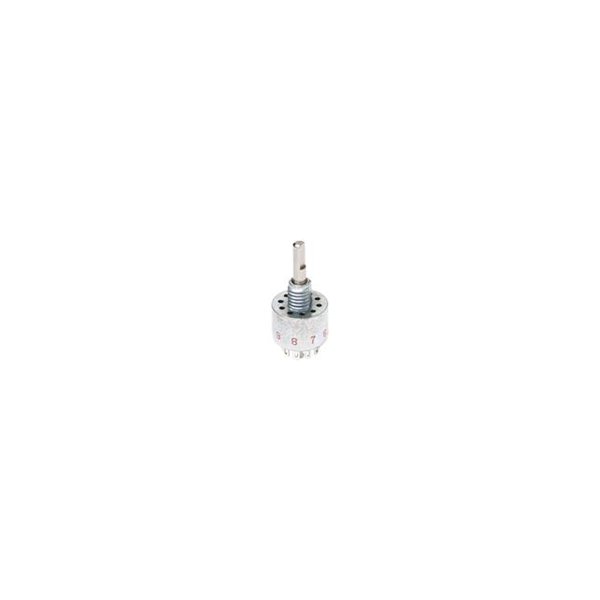

MA10L3NCGD Real Image
Same model may have multiple batches, images only for reference.

MA10L3NCGD

Part No MA10L3NCGD
Manufacturer C&K Components
Catalog Rotary Switches
Description SWITCH ROTARY 10POS 250MA 125V / Rotary Switch 10 Position SP10T 250mA (AC/DC) 125 VAC Panel Mount, Through Hole
Datasheet
MA10L3NCGD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rotary Switches
Mfr C&K
Series M
Package Tray
Number of Positions 10
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 1
Circuit per Deck SP10T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 250mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 28 V
Actuator Type Round (3.17mm Dia)
Actuator Length 10.16mm
Angle of Throw 36°
Contact Material Copper Alloy
Contact Finish Gold
Mounting Type Panel Mount, Through Hole
Termination Style PC Pin
Depth Behind Panel 10.42mm
Panel Cutout Dimensions Circular - 6.60mm Dia
Base Product Number MA10L3N
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
Other Names 2266-MA10L3NCGD,-MA10L3NCGD
Standard Package 80
Win Source Part Number 1076382-MA10L3NCGD
Ultra Librarian 3D Model Ultra Librarian MA10L3NCGD CAD Model

Description

The C&K MA10L3NCGD is a rotary switch with 10 positions and a non-shorting (BBM) contact timing.

  • Current Rating: 250mA (AC/DC)
  • Voltage Rating: 125 V (AC) and 28 V (DC)
  • Panel Cutout Dimension: circular - 6.60mm Dia
  • Angle of Throw: 36°
