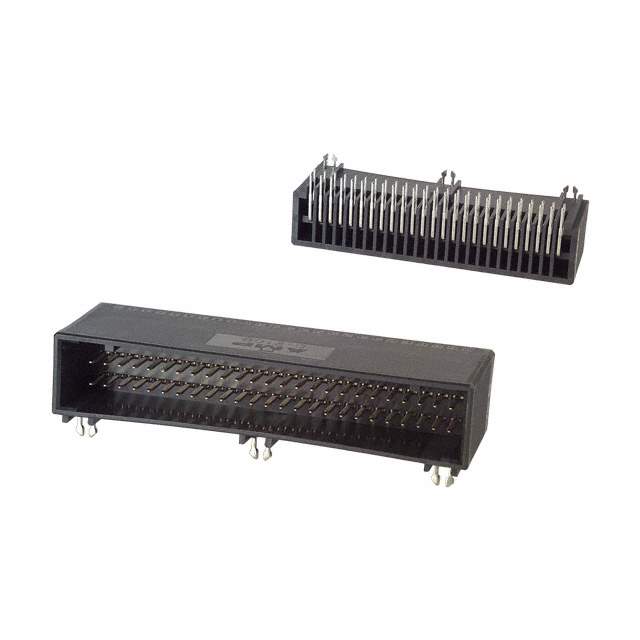

Same model may have multiple batches, images only for reference.

1318579-1

Name: 1318579-1
Brand: TE Connectivity
SKU: 1339239
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1318579-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 50POS 2.5MM / Connector Header Through Hole, Right Angle 50 position 0.098" (2.50mm)
Datasheet	1318579-1 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	Dynamic D-2000
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Tab
Pitch - Mating	0.098" (2.50mm)
Number of Positions	50
Number of Rows	2
Row Spacing - Mating	0.148" (3.75mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Post	0.134" (3.40mm)
Insulation Height	0.604" (15.35mm)
Contact Shape	Rectangular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic, Polyester, Glass Filled
Features	Board Lock
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	5A
Voltage Rating	250V
Applications	General Purpose, Industrial
Base Product Number	1318579
Standard Package	5,040
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1339239-1318579-1
Ultra Librarian 3D Model	Ultra Librarian 1318579-1 CAD Model

Description

The TE Connectivity AMP Connectors 1339239-1318579-1 is a male pin header connector that has 50 positions and is part of the Dynamic D-2000 series.

Manufacturer: TE Connectivity AMP Connectors
Product Name: 1339239-1318579-1
Series: Dynamic D-2000
Number of Positions: 50
Board Lock: Yes
Contact Type: Tab
Loaded Positions: All
Number of Rows: Two
Termination: Solder
Fastening Type: Detent Lock
Package: Bulk
Contact Material: Copper Alloy
Voltage Rating: 250V
Mated Stacking Heights: Yes
Category: Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Win Source Part Number: 1339239-1318579-1
