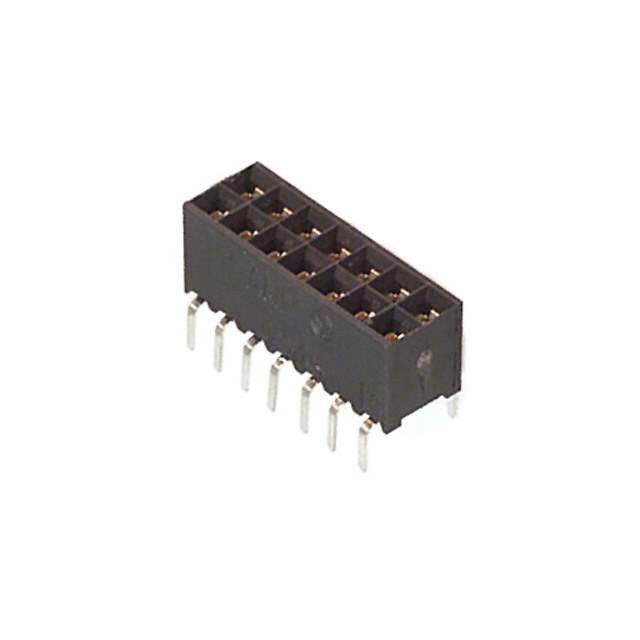

The TE Connectivity AMP Connectors 763977-5-534267-1 is a board to board connector.

• Pitch: 0.100\" (2.54mm)
• Positions: 14
• Mounting: Through Hole
• Connector Type: Receptacle
• Entry: Bottom or Top
• Contact Type: Female Socket
• All Positions Loaded: Yes
• Rows: 2
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Material: Phosphor Bronze
• Insulation Material: Polyester, Glass Filled
• Contact Finish-Mating: Gold
• Contact Finish-Thickness-Mating: 30μin (0.76μm)
• Contact Finish-Post: Tin
• Contact Finish-Thickness-Post: 150μin (3.81μm)
• Insulation Color: Black
• Row Spacing-Mating: 0.100\" (2.54mm)
• Contact Length-Post: 0.125\" (3.18mm)
• Insulation Height: 0.265\" (6.73mm)
• Contact Shape: Square
• Category: Connectors and Interconnects
• Popularity: Medium
• Supply and Demand Status: Limited
