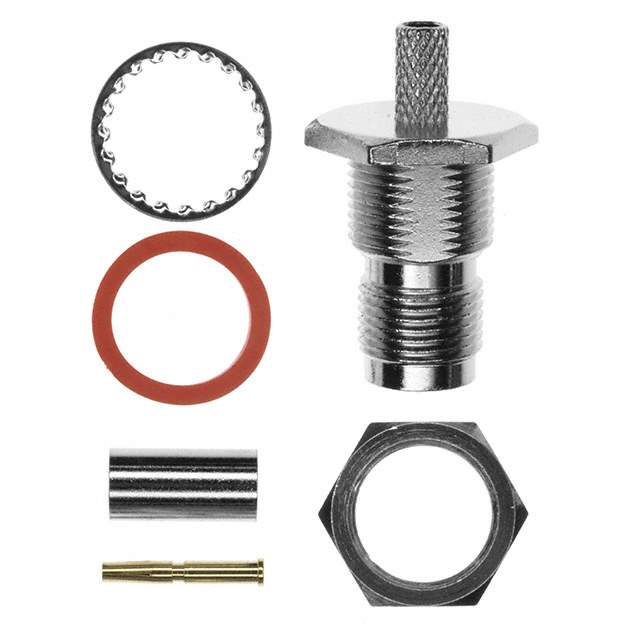

The ZDC and Greenpar TNC Jack Female Socket Connector is an ideal component for use in coaxial connectors (RF) for electronic devices.

• Connector Type: TNC jack female socket
• Fastening Type: threaded
• Connector Style: bulkhead - front side nut
• Connector Termination: crimp
• Body Material: zinc alloy
• Body Finish: nickel
• Housing Color: silver
• Center Contact Material: phosphor bronze
• Center Contact Plating: gold
• Dielectric Material: polyoxymethylene (POM) acetal
• Impedance: 50Ohm
• Voltage Rating: 500 V
• Frequency Range: up to 4 GHz
• Insertion Loss: 0.2dB
• Cable Groups: RG-58C, 141A, and Belden 9907
• Packaging: bulk
• Standard Package: 100
• Includes: 8 pieces, including 1 connector, 1 contact, 2 ferrules, 1 gasket, 1 lockwasher, 1 nut, and 1 sleeve
• Temperature Range: -65°C to 85°C
• REACH: REACH affected
