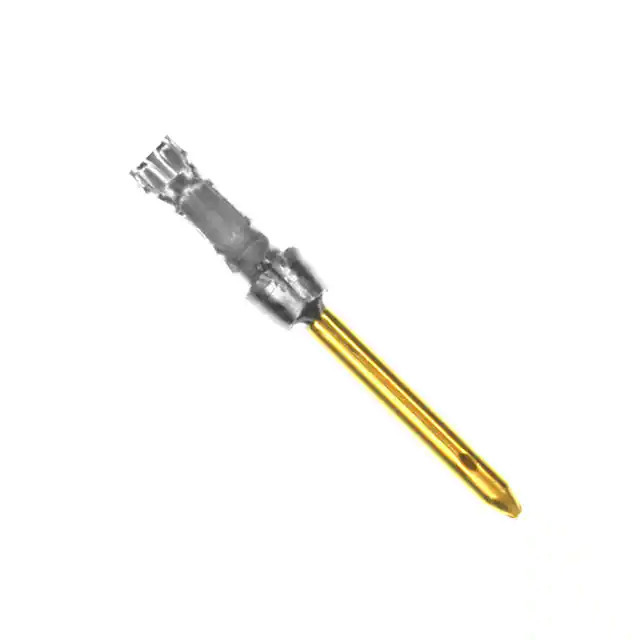

5-166054-1 TE Connectivity
Same model may have multiple batches, images only for reference.

5-166054-1

Part No 5-166054-1
Manufacturer TE Connectivity
Catalog D - Sub, D - Shaped Connectors - Contacts
Description CONN D-SUB PIN 24-28AWG CRIMP / D-Sub Contact Male Pin Gold 24-28 AWG Crimp Stamped
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Contacts
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Tape & Reel (TR)
Product Status Active
Type Signal
Contact Type Male Pin
Contact Form Stamped
Wire Gauge 24-28 AWG
Contact Termination Crimp
Contact Material Brass
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Termination Finish Tin
Termination Finish Thickness -
Contact Size 20 DF
Features Insulation Support
Base Product Number 166054
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363371-5-166054-1
Ultra Librarian 3D Model Ultra Librarian 5-166054-1 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HDP-20 is a D-sub connector contact designed for signal applications.

  • Contact Gender: Male
  • Contact Type: Pin
  • Contact Termination: Crimp
  • Contact Material: Brass
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Wire Gauge: 24-28 AWG
  • Packaging: Tape and Reel
  • Product Status: Active
  • HTSUS: 8536.90.4000
  • ECCN: EAR99
