Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub, D-Shaped Connector Contacts
Mfr HARTING
Series -
Package Bulk
Type Signal
Contact Type Female Socket
Contact Form Stamped
Wire Gauge 24-28 AWG
Contact Termination Crimp
Contact Material Brass
Contact Finish Palladium-Nickel
Contact Finish Thickness -
Termination Finish Nickel
Termination Finish Thickness -
Contact Size -
Features Insulation Support
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Standard Package 1 pcs
Win Source Part Number 1381259-09670007268
Ultra Librarian 3D Model Ultra Librarian 09670007268 CAD Model

Description

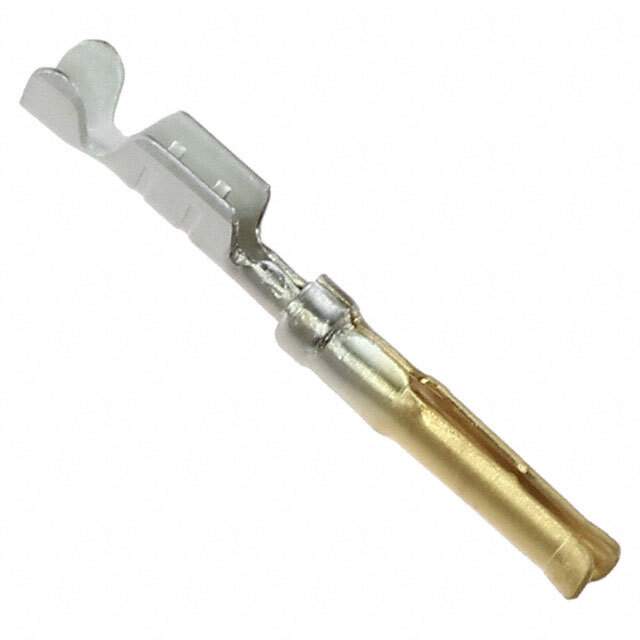

The D-Sub, D-Shaped Connector Contacts are female socket contacts designed for use in D-Sub connectors.

  • Type: Female Socket
  • Insulation Support: Yes
  • Contact Material: Brass
  • Contact Finish: Palladium-Nickel
  • Termination: Crimp
  • Wire Gauge: 24-28 AWG
  • Package: Bulk
  • Contact Form: Stamped
  • Termination Finish: Nickel
  • Operating Temperature: -55°C to 105°C
  • Manufacturer: HARTING
