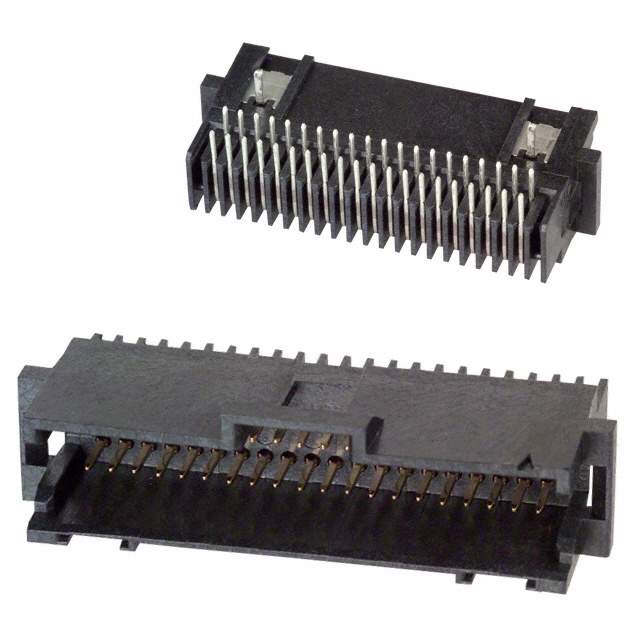

5-104069-6 Real Image
Same model may have multiple batches, images only for reference.

5-104069-6

Part No 5-104069-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 40POS 1.27MM / Connector Header Through Hole, Right Angle 40 position 0.050" (1.27mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 40
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 2 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.125" (3.18mm)
Contact Length - Post 0.100" (2.54mm)
Insulation Height 0.290" (7.37mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Features Board Guide
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 30VAC
Contact Finish Thickness - Post 150.0µin (3.81µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 104069
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number Q7324583,51040696,-5-104069-6-CSI,2266-5-104069-6,A31868
Standard Package 16
Win Source Part Number 1332041-5-104069-6
Ultra Librarian 3D Model Ultra Librarian 5-104069-6 CAD Model

Description

TE Connectivity AMP Connectors 1332041-5-104069-6 is a header connector that is widely used in automotive, general purpose, medical, and telecommunications applications.

  • Material: Copper Alloy
  • Voltage Rating: 30VAC
  • Rows: 2
  • Positions Loaded: 40
  • Features: Board Guide
  • Termination: Solder
  • Fastening: Latch Holder
  • Contact Finish Mating: Gold, 30.0µin (0.76µm)
  • Contact Finish Post: Tin, 150.0µin (3.81µm)
  • Pitch-Mating: 0.050" (1.27mm)
  • Row Spacing-Mating: 0.100" (2.54mm)
  • Insulation Material: Thermoplastic
  • Flammability Rating: UL94 V-0
  • Shroud: 2 Walls
  • Contact Shape: Circular
  • Contact Length-Mating: 0.125" (3.18mm)
  • Contact Length-Post: 0.100" (2.54mm)
  • Temperature Range: -65°C to 105°C
