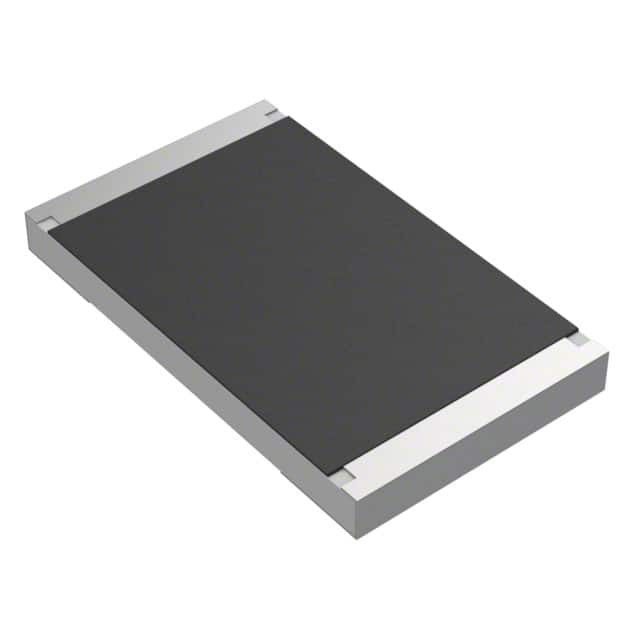

3560820KJT TE Connectivity
Same model may have multiple batches, images only for reference.

3560820KJT

Part No 3560820KJT
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series 3560, CGS
Package Tape & Reel
Resistance 820 kOhms
Tolerance ±5%
Power (Watts) 6W
Composition Thick Film
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Nonstandard
Dimension 0.457" L x 0.270" W (11.60mm x 6.85mm)
Height - Seated (Max) 0.047" (1.20mm)
Number of Terminations 2
Base Product Number 3560
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1315094-3560820KJT
Ultra Librarian 3D Model Ultra Librarian 3560820KJT CAD Model

Description

The 3560, CGS series chip resistor is a thick film resistor with a resistance of 820 kOhms and a power rating of 6W from TE Connectivity Passive Product.

  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Mounting: surface mount
  • Package: nonstandard
  • Height: 0.047" (1.20mm)
  • Dimensions: 0.457" L x 0.270" W (11.60mm x 6.85mm)
  • Operating Temperature: -55°C to 155°C
  • Package: tape and reel
  • ECCN: EAR99
  • Failure Rate: not specified
