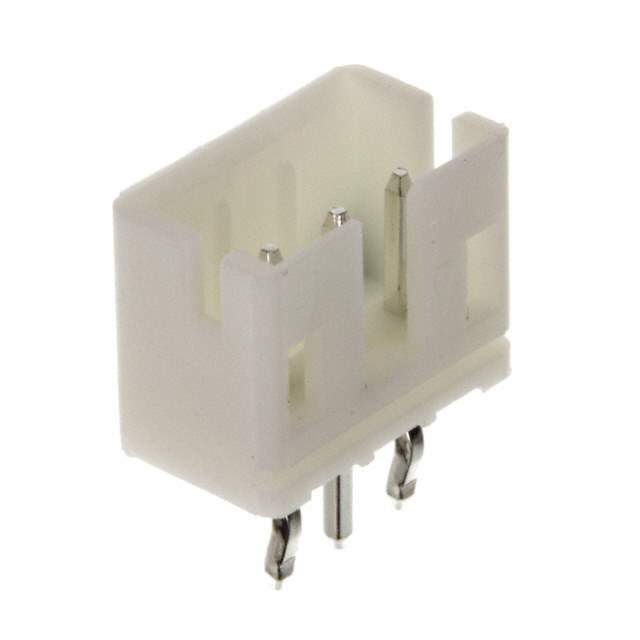

440054-3 Real Image
Same model may have multiple batches, images only for reference.

440054-3

Part No 440054-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER 3POS 2MM VERT T/H
Datasheet
440054-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Number of Positions 3
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Press-Fit, Solder
Contact Length - Mating 0.132" (3.35mm)
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length 0.335" (8.51mm)
Insulation Height 0.238" (6.05mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 80μin (2.03μm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 3A
Voltage Rating 250V
Contact Finish Thickness - Post 80μin (2.03μm)
Applications Automotive, General Purpose, Industrial, Medical
Win Source Part Number 1005552-440054-3
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 440054-3 CAD Model

Description

This electronic component is a Header Connector manufactured by TE Connectivity AMP Connectors.

  • Win Source Part Number: 1005552-440054-3
  • Connector Type: Shrouded, 3 wall
  • Insulation Color: Natural
  • Application: Board to cable/wire
  • Mounting Type: Through hole
  • Pitch-Mating: 0.079 inches
  • Current Rating: 3A
  • Voltage Rating: 250V
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
