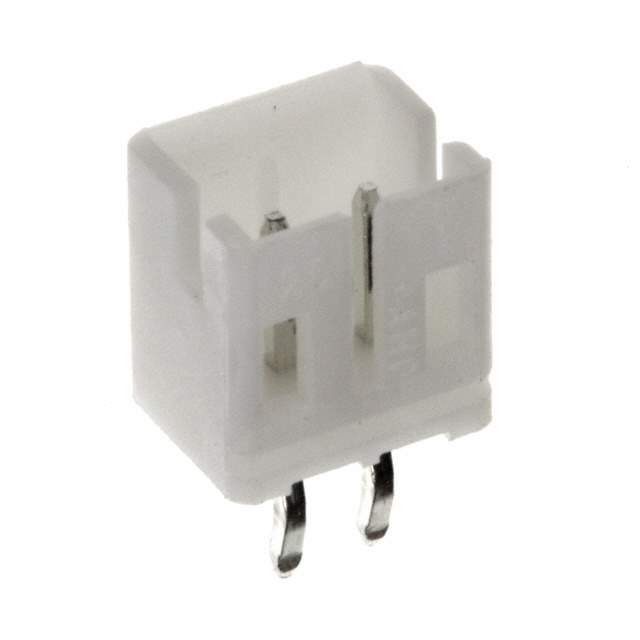

Same model may have multiple batches, images only for reference.

440054-2

Name: 440054-2
Brand: TE Connectivity
SKU: 546022
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	440054-2
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	2.0 MM PITCH HPI VERTICAL POST HEADERS \| CONN HEADER VERT 2POS 2MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Style	Through Hole
Termination	Press-Fit, Solder
Contact Length - Mating	0.132" (3.35mm)
Contact Length - Post	0.134" (3.40mm)
Overall Contact Length	0.335" (8.51mm)
Insulation Height	0.238" (6.05mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	80.0μin (2.03μm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Contact Finish Thickness - Post	80.0μin (2.03μm)
Applications	Automotive, General Purpose, Industrial, Medical
Manufacturer Pack Quantity	1,000
MSL Level	1 (Unlimited)
Win Source Part Number	1128710-440054-2
Manufacturer Homepage	www.macom.com
Popularity	Medium
Supply and Demand Status	Balance
Application Field	Used in Industrial
Ultra Librarian 3D Model	Ultra Librarian 440054-2 CAD Model

Description

The 440054-2 is a header connector manufactured by TE Connectivity AMP Connectors.

Supply and Demand Status: Balanced
Applications: Automotive, general purpose, industrial, and medical
Current Rating: 3A
Application: Industrial
