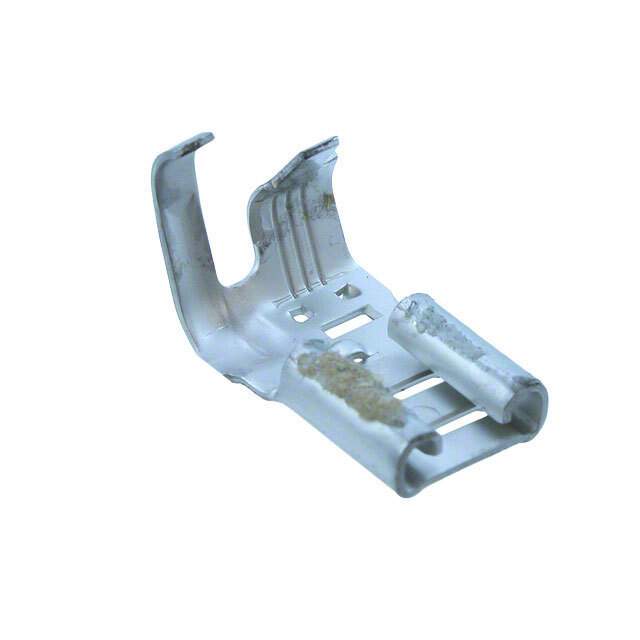

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.305" (7.75mm)
Termination Crimp
Wire Gauge 12-18 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line), Right Angle
Contact Material Phosphor Bronze
Contact Finish Tin
Insulation Diameter 0.110" ~ 0.210" (2.79mm ~ 5.33mm)
Base Product Number 4180
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 41800-ND,-41800-CSI,-41800-SI,A27661TR,A27661CT,2266-41800,A27661,A27661-ND
Standard Package 4,000
Win Source Part Number 1333455-41800
Ultra Librarian 3D Model Ultra Librarian 41800 CAD Model

Description

The TE Connectivity AMP Connectors 1333455-41800 is a female quick disconnect connector designed for use in a range of applications.

  • Type: Female Quick Disconnect
  • Termination: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 12-18 AWG
  • Insulation: Non-Insulated
  • Terminal Type: Angled - 90°, Flag
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Tab Length: 0.305" (7.75mm)
  • Insulation Diameter: 0.110" to 0.210" (2.79mm to 5.33mm)
  • Packaging: Reel
  • Standard Package: 4,000
  • Mounting: Free Hanging (In-Line) or Right Angle
  • RoHS Compliant: Yes
  • ECCN: EAR99
