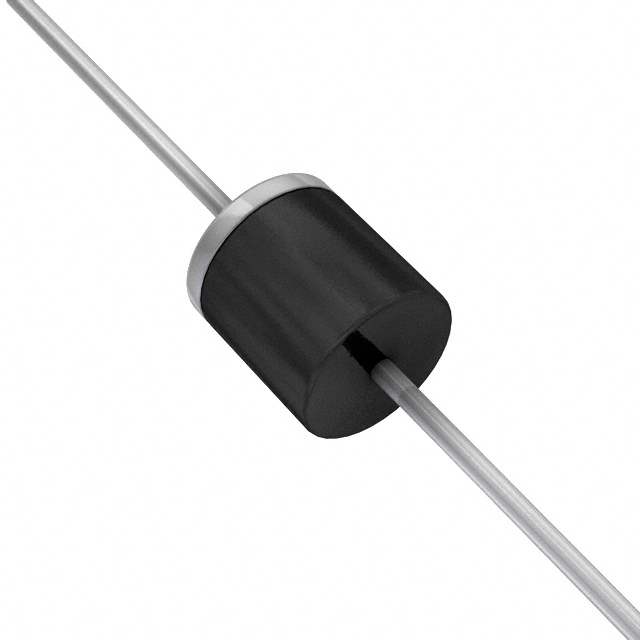

FR601 Real Image
Same model may have multiple batches, images only for reference.

FR601

Part No FR601
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 50V 6A R-6 / Diode 50 V 6A Through Hole R-6
Datasheet
FR601 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr SMC Diode Solutions
Package Tape & Reel
Product Status Obsolete
Technology Standard
Voltage - DC Reverse (Vr) (Max) 50 V
Current - Average Rectified (Io) 6A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 6 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 150 ns
Current - Reverse Leakage @ Vr 10 µA @ 50 V
Capacitance @ Vr, F 100pF @ 4V, 1MHz
Mounting Type Through Hole
Package / Case R-6, Axial
Supplier Device Package R-6
Operating Temperature - Junction -65°C ~ 125°C
Base Product Number FR60
Standard Package 500 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 919295-FR601
Ultra Librarian 3D Model Ultra Librarian FR601 CAD Model

Description

The 919295-FR601 is a fast recovery rectifier diode designed for high-speed switching applications.

  • Maximum Reverse Voltage: 50V
  • Average Rectified Current: 6A
  • Forward Voltage Drop: 1.2V @ 6A
  • Reverse Recovery Time: 150ns
  • Reverse Leakage Current: 10μA @ 50V
  • Capacitance: 100pF @ 4V and 1MHz
  • Operating Temperature Range: -65°C to 125°C
  • Mounting Type: Through-Hole
  • Package: R-6 Axial
  • Manufacturer: SMC Diode Solutions
  • Series: FR60
  • Product Status: Obsolete
  • REACH: Unaffected
  • ECCN: EAR99
