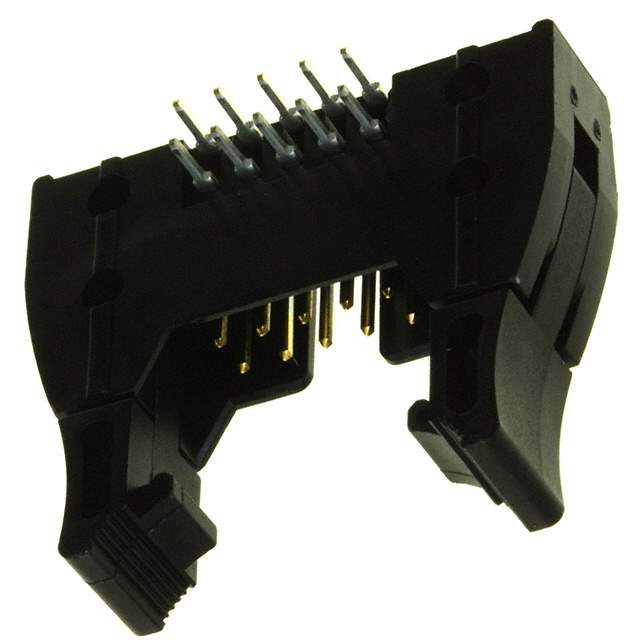

The Omron XG4A-1074 is a header connector with a pitch of 0.100" (2.54mm) and 10 positions.

• Pitch: 0.100" (2.54mm)
• Positions: 10
• Keying Slot: Yes
• Mounting Flange: Yes
• Connector Type: Header
• Contact Type: Male Pin
• Positions Loaded: All
• Rows: 2
• Termination: Solder
• Fastening Type: Latch Lock/Eject Hooks, Long
• Package: Bulk
• Contact Material: Brass, Nickel
• Voltage Rating: 300V
• Flammability Rating: UL94 V-0
• Insulation Material: Polybutylene Terephthalate (PBT), Glass-Filled
• Shrouding: Shrouded-4 Wall
• Contact Finish (Mating): Gold, 5.90µin (0.150µm)
• Contact Finish (Post): Tin, 78.7µin (2.00µm)
• Insulation Color: Black
• Mounting Type: Through Hole, Right Angle
• Temperature Range: -55°C ~ 105°C
