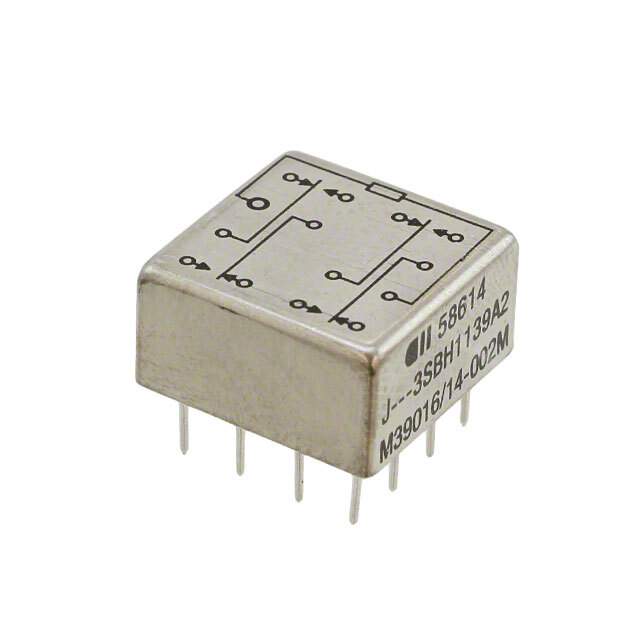

3SBH1139A2 Real Image1 3SBH1139A2 Real Image2
3SBH1139A2 Real Image1 3SBH1139A2 Real Image2
Same model may have multiple batches, images only for reference.

3SBH1139A2

Part No 3SBH1139A2
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOS 4PDT 2A 26.5VDC / General Purpose Relay 4PDT (4 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Signal Relays, Up to 2 Amps
Mfr TE Connectivity Aerospace, Defense and Marine
Series Military, MIL-R-39016/14, 3SBH, CII
Package Bulk
Mounting Type Through Hole
Coil Voltage 26.5VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 2 A
Switching Voltage 28VDC - Nom
Coil Current 36.8 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Hermetically
Must Operate Voltage 13.5 VDC
Must Release Voltage 1.5 VDC
Operate Time 4 ms
Release Time 4 ms
Temperature Range - Operating -65°C ~ 125°C
Relay Type General Purpose
Coil Resistance 720 Ohms
Base Product Number 3SBH1
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Other Names 1122-1108-ND,1122-1108-MIL,A132183,A101669,3SBH1139A2-ND,1122-1108,A101669-ND,M39016/14-002M,1-1617076-1
Standard Package 1
Win Source Part Number 1034752-3SBH1139A2
Ultra Librarian 3D Model Ultra Librarian 3SBH1139A2 CAD Model

Description

The TE Connectivity Aerospace, Defense and Marine Signal Relay is a 4PDT (4 Form C) general-purpose relay with a coil voltage of 26.5VDC.

  • Contact Form: 4PDT (4 Form C)
  • Coil Voltage: 26.5VDC
  • Coil Resistance: 720 Ohms
  • Coil Current: 36.8 mA
  • Contact Rating: 2 A
  • Switching Voltage: 28VDC - Nom
  • Operating Temperature: -65°C ~ 125°C
  • Seal Rating: Sealed - Hermetically
  • Mounting Type: Through-Hole
  • Release Time: 4 ms
  • Operate Time: 4 ms
  • RoHS Compliant: No
