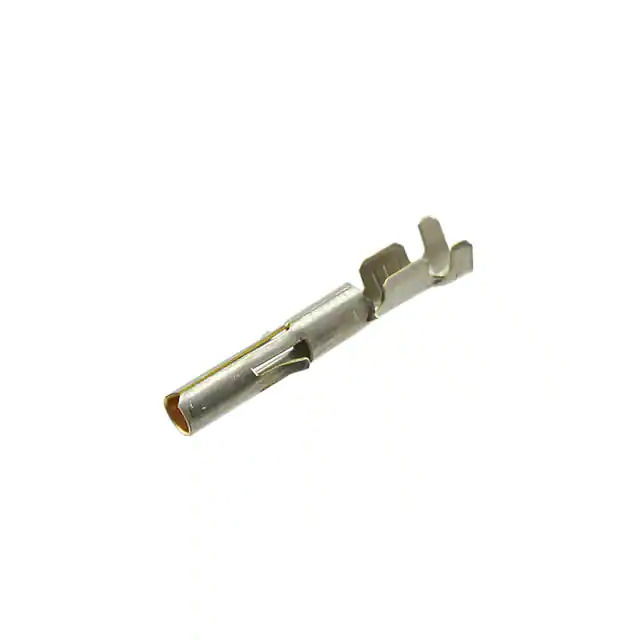

350570-7 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity AMP Connectors
Series Universal MATE-N-LOK
Package Tape & Reel (TR)
Product Status Active
Type -
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 18-24 AWG
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 350570
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363385-350570-7
Ultra Librarian 3D Model Ultra Librarian 350570-7 CAD Model

Description

The TE Connectivity AMP Connectors rectangular connector contacts are essential components for your electronic projects.

  • Connector Type: Rectangular Connectors
  • Wire Gauge: 18 to 24 AWG
  • Termination Type: Crimp
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Series: Universal MATE-N-LOK
  • Packaging: Tape and Reel
  • Product Status: Active
  • REACH Compliant: Unaffected
