350536-7 TE Connectivity

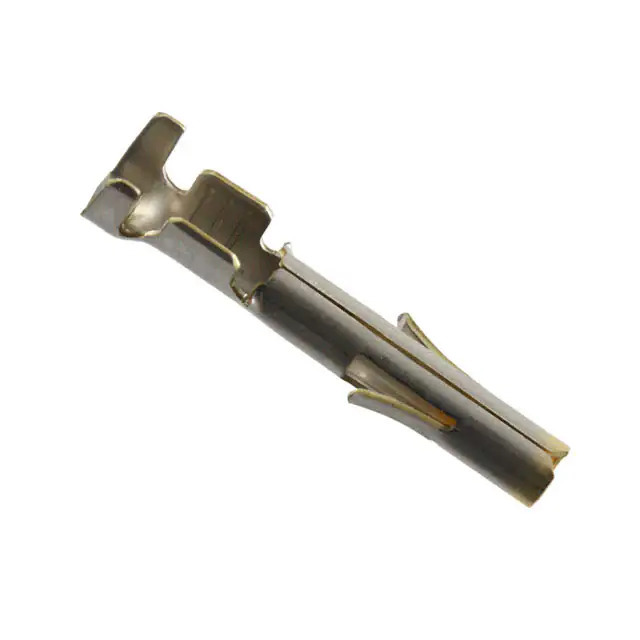

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity AMP Connectors
Series Universal MATE-N-LOK
Package Tape & Reel (TR)
Product Status Active
Type -
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 14-20 AWG
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 350536
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363439-350536-7
Ultra Librarian 3D Model Ultra Librarian 350536-7 CAD Model

Description

The TE Connectivity AMP Connectors Universal MATE-N-LOK series offers a socket type rectangular connector contact with crimp termination.

  • Manufacturer: TE Connectivity AMP Connectors
  • Product Series: Universal MATE-N-LOK
  • Product Type: Rectangular Connector Contact
  • Contact Type: Socket
  • Termination Method: Crimp
  • Wire Gauge (AWG): 14-20
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Packaging: Tape & Reel
  • Product Status: Active
  • Base Product Number: 350536
  • HTSUS Code: 8536.90.4000
  • REACH Status: Unaffected
  • ECCN: EAR99
