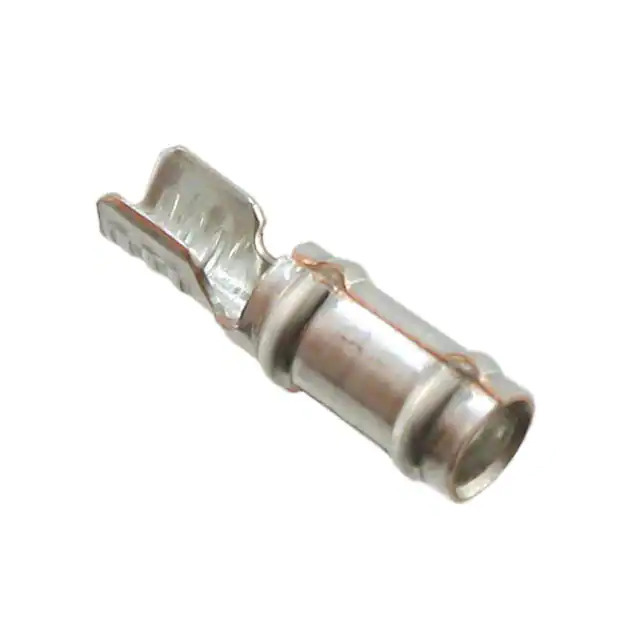

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Barrel, Bullet Connectors
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Terminal Type Female, Receptacle (Socket)
Diameter - Barrel 0.093" (2.36mm)
Wire Gauge 18-22 AWG
Length - Overall 0.435" (11.05mm)
Length - Barrel 0.255" (6.48mm)
Insulation Non-Insulated
Termination Crimp
Features -
Contact Material Phosphor Bronze
Contact Finish Tin
Color -
Insulation Diameter -
Material - Insulation -
Base Product Number 350015
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364835-350015-2
Ultra Librarian 3D Model Ultra Librarian 350015-2 CAD Model

Description

The barrel and bullet connectors from TE Connectivity AMP Connectors provide a reliable and efficient solution for your terminal needs.

  • Terminal Type: Female Receptacle (Socket)
  • Termination: Crimp
  • Wire Gauge: 18-22 AWG
  • Contact Finish: Tin
