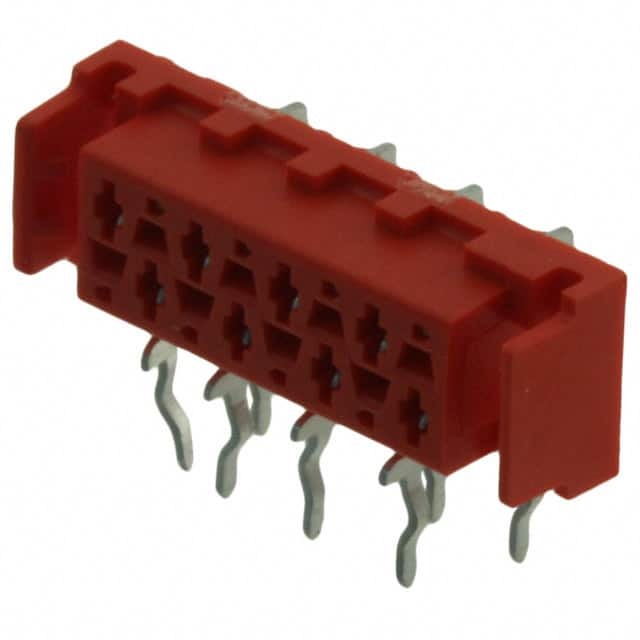

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr TE Connectivity
Series Micro-MaTch
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Friction Lock
Contact Finish - Mating Tin
Insulation Color Red
Insulation Height 0.228" (5.80mm)
Contact Length - Post 0.122" (3.10mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Voltage Rating 100VDC
Applications Automotive, General Purpose
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Material Phosphor Bronze
Base Product Number 338070
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 855730-338070-8
Ultra Librarian 3D Model Ultra Librarian 338070-8 CAD Model

Description

The Micro-MaTch series 8-position receptacle is a versatile connector designed for board-to-board or cable applications.

  • Number of Positions: 8
  • Pitch: 0.100" (2.54mm)
  • Contact Type: Forked
  • Loaded Positions: All
  • Contact Material: Phosphor Bronze
  • Contact Finish: Tin Plated
  • Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Mounting Type: Through Hole, Right Angle
  • Temperature Range: -40°C to 105°C
  • Series: Micro-MaTch
  • Packaging: Tape & Reel or Cut Tape
  • Pieces per Package: 2,500
  • Status: Active
  • Manufacturer: TE Connectivity
  • Applications: Automotive and General Purpose
