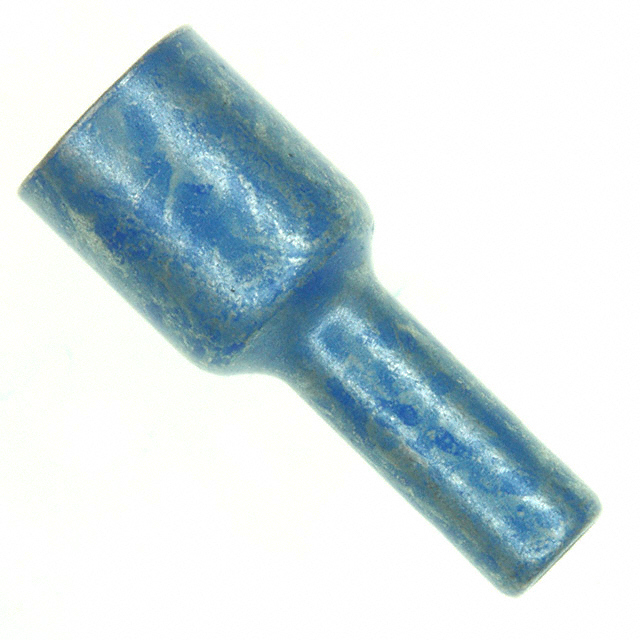

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Terminal Type Standard
Stud/Tab Size 6 Stud
Width - Outer Edges 0.244" (6.20mm)
Length - Overall 0.846" (21.49mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Insulated
Features Serrated Termination
Color Blue
Contact Finish Tin
Contact Material Copper
Package Bulk
Supply and Demand Status Normal
Win Source Part Number 1635716-328281
Ultra Librarian 3D Model Ultra Librarian 328281 CAD Model
