Same model may have multiple batches, images only for reference.

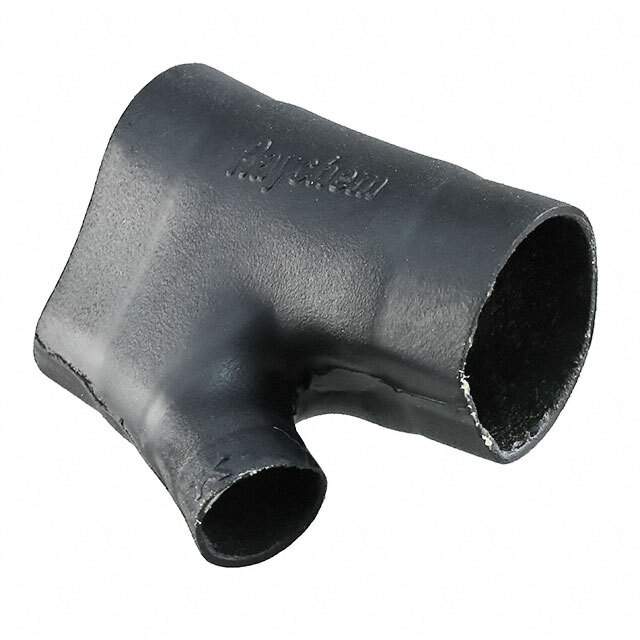

322A112-25/86-0 Real Image
Same model may have multiple batches, images only for reference.

322A112-25/86-0

Part No 322A112-25/86-0
Manufacturer TE Connectivity
Catalog Heat Shrink Boots, Caps
Description HEATSHRNK BOOT BRKOUT 2:1 T SZ12 / Heat Shrink Boot, Transition - Breakout, 2:1 (T) Black 12
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cables, Wires - Management>Heat Shrink Boots, Caps
Mfr TE Connectivity Aerospace, Defense and Marine
Series Thermofit 322A1
Package Bulk
Shell Size - Insert 12
Features Adhesive Coating, Fluid Resistant
Color Black
Material Elastomer, Semi-Rigid
Large Diameter Supplied 0.520" (13.21mm)
Large Diameter Recovered 0.230" (5.84mm)
Small Diameter Supplied 0.260" (6.60mm)
Small Diameter Recovered 0.118" (3.00mm)
Large Recovered Length 1.031" (26.19mm)
Small Recovered Length 0.760" (19.30mm)
Total Length Recovered 2.059" (52.30mm)
Base Product Number 322A112
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 3926.90.9985
Other Names 720455-000,322A112-25/86-0-ND,A125942
Standard Package 1
Win Source Part Number 973014-322A112-25/86-0
Ultra Librarian 3D Model Ultra Librarian 322A112-25/86-0 CAD Model

Description

The Thermofit 322A1 973014-322A112-25/86-0 heat shrink boot is a semi-rigid elastomer material that is fluid-resistant and has an adhesive coating.

  • Packaging: bulk
  • Shell Size: 12
  • Large Diameter: 0.520" (13.21mm)
  • Small Diameter: 0.260" (6.60mm)
  • Large Recovered Length: 1.031" (26.19mm)
  • Small Recovered Length: 0.760" (19.30mm)
  • Total Length Recovered: 2.059" (52.30mm)
  • Series: Thermofit 322A1
  • Used for: cables, wires, and management of heat shrink boots and caps
  • MSL Level: not applicable
  • REACH: unaffected
